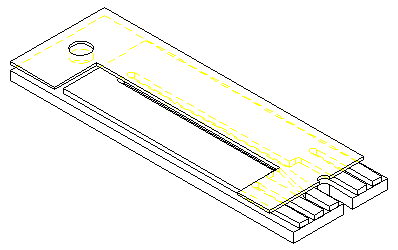

Model ER0250 is a probe used to monitor corrosion in atmospheric environments. The
probe consists of an element which is mounted onto an epoxy board. One side of the element
is exposed to the corrosive environment while the other side is covered, acting as a
reference element. The ER0250 connects to a special cable that allows it to be used with
electrical resistance probe instrumentation. Replacement elements may be ordered without a
cable. The probe comes with a 3/16" hole for easy mounting.
Specifications:
Probe Body - Epoxy
Temperature Rating - 250ºF / 121ºC
Standard Element Sizes - 4 or 8 mils (useful range is half of
thickness)
| Model | ||||
| AP21 | - Atmospheric Probe | |||
| ¦ | Element Thickness | |||
| ¦ | 04 | - 4 mil thickness (2 mil useful probe life) | ||
| ¦ | 08 | - 8 mil thickness (4 mil useful probe life) | ||
| ¦ | ¦ | Element Alloy | ||
| ¦ | ¦ | XXX | - Use Code in Alloy Chart | |
| ¦ | ¦ | ¦ | Cable Length | |
| ¦ | ¦ | ¦ | 00 | - No cable |
| ¦ | ¦ | ¦ | 10 | - 10 ft cable |
| ¦ | ¦ | ¦ | 20 | - 20 ft cable |
| ¦ | ¦ | ¦ | ¦ | |
| AP21 | 08 | 375 | 20 | Example of Probe Ordering # |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
| Alloy Chart | ||
| Code | Description | UNS # |
| 375 | C1010 | G10100 |
| 538 | 5Cr 1/2mo | K42544 |
| 541 | 9Cr 1mo | K90941 |
| 186 | 410 S.S. | S41000 |
| 141 | 304 S.S. | S30400 |
| 159 | 316L S.S. | S31603 |
| A12 | C276 | N10276 |
| 602 | Alloy 625 | N06625 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
Note: Not all alloys are available with all element types and seals.

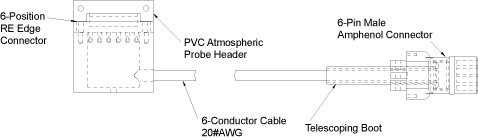

Part # : PS5602XXX
where XXX = length in feet (Ex: 020 = 20 feet)
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
Main Office:
Phone: (256) 358-4202
Fax: (256) 358-4515
E-mail: msc@alspi.com
Houston Office:
Phone: (281) 471-2777
Fax: (281) 471-3405
