Model LP1100

Linear Polarization Resistance Probe

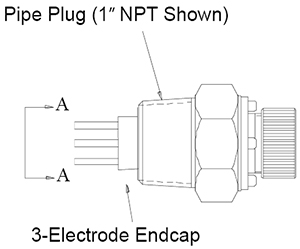

Adjustable Length with 3/4" NPT Fitting and 3-Electrode Endcap

View PDF version

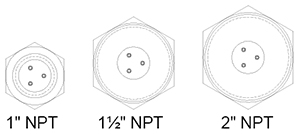

VIEW A-A



Model LP1100 is a linear polarization resistance probe commonly used in laboratory, bypass-loop, and field applications. The assembly consists of a 1", 1 1/2", or 2" NPT pipe plug, and a five-pin military connector mounted in place. Replaceable mounting studs can be ordered with 1 1/2" and 2" pipe plugs. Electrodes are ordered separately. Several standard electrodes are available to meet your specific needs.

Specifications:

Probe Body - 316 Stainless Steel
Endcap Seal - Glass
Fill Material - Epoxy
Temperature Rating - 500° F / 260° C
Pressure Rating - 3000 PSI / 204 Bar
Mounting - 1", 1 1/2", or 2" NPT Pipe Plug



LP1100 Ordering Information

Model
LP13 - Linear Polarization 1" NPT Pipe Plug Probe (LP13 cannot be used with replaceable mounting studs)
LP16 - Linear Polarization 2" NPT Pipe Plug Probe
LP17 - Linear Polarization 1 1/2" NPT Pipe Plug Probe
  Probe Body Material
02 - 316
03 - CS
04 - C276
  LP Electrode Options
10 - Three-electrode plug type (replaceable mounting studs)
30 - Three-electrode integral type (non-replaceable mounting studs)
  Seal Type
100 - Glass

Options
000 - None
Your Part Number


Description:

Quantity:


This list represents our most common options.  Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.
(Note: Not all alloys are available with all element types and seals.)
* Chemically equivalent to standard pipe-grade carbon steels.

Electrodes are replaceable and are sold separately (below.)



EL412 Style Electrodes


Common Electrodes
Alloy UNS Number Part#
C1018 Carbon Steel G10180 EL4123772800000
Quantity:
304L Stainless Steel G30403 EL4121452800000
Quantity:
316L Stainless Steel S31603 EL4121592800000
Quantity:
CDA110 Copper C11000 EL4124192800000
Quantity:
CDA443 Admiralty Brass C44300 EL4124342800000
Quantity:
AL1100 Aluminum A91100 EL4122902800000
Quantity:
AL6061 Aluminum A96061 EL4123382800000
Quantity:
AL7075 Aluminum A97075 EL4122272800000
Quantity:
Other - Please specify in comments N/A EL412XXX2800000
Quantity:
