Model LP2000

Linear Polarization Resistance Probe
Fixed Length with NPT Pipe Plug & 2-Electrode Endcap

View PDF version

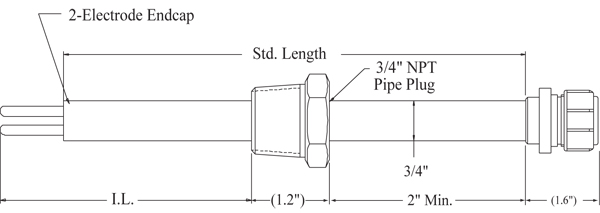

Model LP2000 is a fixed-length, linear polarization resistance probe with an NPT pipe plug. The probe requires process isolation or process shutdown to install and a threaded pipe fitting to mount. The probe assembly consists of an insertion rod with a two-electrode endcap, a hermetically sealed connector, and an NPT pipe plug which are all welded in place. The insertion length (I.L.) is calculated to the end of the electrode and can be specified by the customer. For standard probes, the maximum insertion length is given in the chart below. Electrodes are ordered separately. Several standard electrodes are available to meet your specific needs.

Specifications:

Probe Body - 316 Stainless Steel or C276
Endcap Seal - Glass
Fill Material - Epoxy
Temperature Rating - 500° F / 260° C
Pressure Rating - 3000 PSI / 204 Bar
Mounting - 3/4" or 1" NPT Pipe Plug

Std. Length I.L. (Max)
6" 4.05"
8" 6.05"
12" 10.05"
18" 16.05"




LP2000 Ordering Information

Model
LP2 - Linear Polarization Fixed Length Pipe Plug Probe
  Pipe Plug Size
2 - 3/4" NPT Pipe Plug
3 - 1" NPT Pipe Plug
  Probe Body Material
22 - 316
44 - C276

  LP Electrode Options
20 - Two-electrode integral type

Seal Type
1 - Glass
  Length
06 - 4.05" max. insertion length
08 - 6.05" max. insertion length
12 - 10.05" max. insertion length
18 - 16.05" max. insertion length
  Options
000 - None
Your Part Number


Description:

Quantity:


This list represents our most common options.  Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.
(Note: Not all alloys are available with all element types and seals.)
* Chemically equivalent to standard pipe-grade carbon steels.

Electrodes are replaceable and are sold separately (below.)

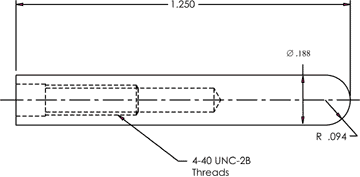

EL400 Style Electrodes



Common Electrodes
Alloy UNS Number Part#
C1010 Carbon Steel G10100 EL4003752800000
Quantity:
304L Stainless Steel G30403 EL4001452800000
Quantity:
316L Stainless Steel S31603 EL4001592800000
Quantity:
CDA110 Copper C11000 EL4004192800000
Quantity:
CDA443 Admiralty Brass C44300 EL4004342800000
Quantity:
AL1100 Aluminum A91100 EL4002902800000
Quantity:
AL6061 Aluminum A96061 EL4003382800000
Quantity:
AL7075 Aluminum A97075 EL4002272800000
Quantity:
Other - Please specify in comments N/A EL400XXX2800000
Quantity:
