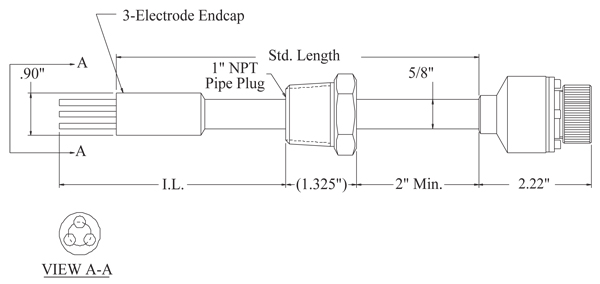

Model LP2100 is a fixed-length, linear polarization resistance probe with a 1" NPT
pipe plug. The probe requires process isolation or process shutdown to install and a
threaded pipe fitting to mount. The probe assembly consists of an insertion rod with a
three-electrode endcap, a 1" NPT pipe plug, and a five-pin military connector mounted
in place. The insertion length (I.L.) is calculated to the end of the electrode and can be
specified by the customer. For standard probes, the maximum insertion length is given in
the chart below. This maximum I.L. is based on the length of a carbon steel electrode. Electrode
lengths may vary depending on the alloy. Electrodes are ordered separately.
| Specifications:
Probe Body - 316 Stainless Steel Endcap Seal - Glass Fill Material - Epoxy Temperature Rating - 500° F / 260° C Pressure Rating - 3000 PSI / 204 Bar Mounting - 1" NPT Pipe Plug |
STD. LENGTH | I.L. (max) |
| 8" | 6.92" | |
| 12" | 10.92" | |
| 18" | 16.92" |
| Model | |||||||
| LP2 | - Linear Polarization Fixed Length Pipe Plug Probe | ||||||
| ¦ | Pipe Plug Size | ||||||
| ¦ | 3 | - 1" NPT | |||||
| ¦ | ¦ | Probe Body Material | |||||
| ¦ | ¦ | 22 | - 316 | ||||
| ¦ | ¦ | ¦ | LP Electrode Options | ||||
| ¦ | ¦ | ¦ | 10 | - Three-electrode plug type | |||
| ¦ | ¦ | ¦ | 30 | - Three-electrode integral type | |||
| ¦ | ¦ | ¦ | ¦ | Seal Type | |||
| ¦ | ¦ | ¦ | ¦ | 1 | - Glass | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | Length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | 08 | - 6.92" max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | 12 | - 10.92" max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | 18 | - 16.92" max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | Options | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 000 | - None |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | |
| LP2 | 3 | 22 | 30 | 1 | 08 | 000 | Example of Probe Ordering # |
Electrode Part Number - EL412XXX2800000 (XXX - use Code in Alloy
Chart)
LPR probe electrodes are replaceable and sold separately. (See Electrodes.)
| Alloy Chart | ||
| Code | Description | UNS # |
| 377 | C1018 | G10180 |
| 159 | 316L S.S. | S31603 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
Not all alloys are available with all electrode types and seals.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
