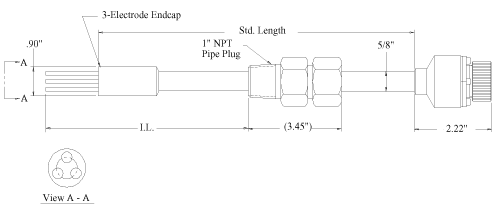

Model LP3100 is a linear polarization resistance probe commonly used in laboratory,
bypass-loop, and field applications. The assembly consists of a 1" NPT compression
fitting, an insertion rod with a hermetically sealed three-electrode endcap, and a
five-pin military connector mounted in place. The insertion length (I.L.) is calculated to
the end of the electrode and can be specified by the customer. For standard probes, the
maximum insertion length is given in the chart below. This maximum I.L. is based on the
length of a carbon steel electrode. Electrode lengths may vary depending on the
alloy. Electrodes are ordered separately.
| Specifications:
Probe Body - 316 Stainless Steel Endcap Seal - Glass Fill Material - Epoxy Temperature Rating - 500° F / 260° C Pressure Rating - 1500 PSI / 102 Bar Mounting - 1" NPT Fitting |
STD. LENGTH | I.L. (max) |
| 8" | 5.8" | |
| 12" | 9.8" | |
| 18" | 15.8" |
| Model | |||||||
| LP3 | - Linear Polarization Adjustable Length Pipe Plug Probe | ||||||
| ¦ | Pipe Plug Size | ||||||
| ¦ | 3 | - 1" NPT | |||||
| ¦ | ¦ | Probe Body Material | |||||
| ¦ | ¦ | 22 | - 316 | ||||
| ¦ | ¦ | ¦ | LP Electrode Options | ||||
| ¦ | ¦ | ¦ | 10 | - Three-electrode plug type | |||
| ¦ | ¦ | ¦ | 30 | - Three-electrode integral type | |||
| ¦ | ¦ | ¦ | ¦ | Seal Type | |||
| ¦ | ¦ | ¦ | ¦ | 1 | - Glass | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | Length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | 08 | - 5.8" max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | 12 | - 9.8" max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | 18 | - 15.8" max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | Options | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 000 | - None |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | |
| LP3 | 3 | 22 | 30 | 1 | 08 | 000 | Example of Probe Ordering # |
Electrode Part Number - EL412XXX2800000 (XXX - use Code in Alloy
Chart)
LPR probe electrodes are replaceable and sold separately. (See Electrodes.)
| Alloy Chart | ||
| Code | Description | UNS # |
| 377 | C1018 | G10180 |
| 159 | 316L S.S. | S31603 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
Not all alloys are available with all electrode types and seals.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
