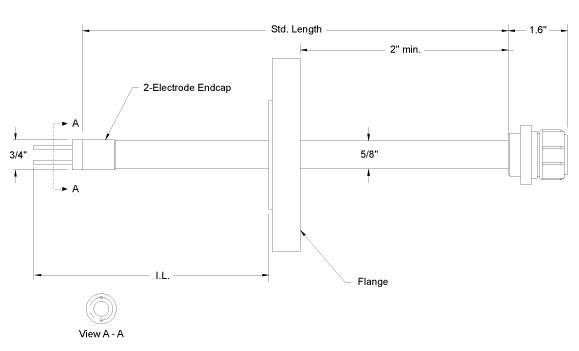

Model LP6000 is a fixed-length, flange-mounted, linear polarization resistance probe. The probe is ideally suited for use in high pressure and/or hazardous applications where threaded fittings are not available or not recommended. Process shutdown or process isolation is required for installation and inspection. The probe assembly consists of an insertion rod with a two-electrode endcap, a hermetically sealed connector, and a flange (as specified by customer), which are all welded in place. Insertion length (I.L.) is calculated to the end of the electrodes and, in this case, is based on a 1" total flange thickness. Customers can specify any length required. For standard probes, the maximum insertion length is given in the chart below. Electrodes are ordered separately. Several standard electrodes are available to meet your specific needs.
| Specifications:
Probe Body - 316 Stainless Steel or C276 Endcap Seal - Glass Fill Material - Epoxy Temperature Rating - 500° F / 260° C Pressure Rating - According to Flange Rating Mounting - Mating Flange |
STD. LENGTH | I.L. (max) |
| 12" | 10.12" | |
| 18" | 16.12" | |
| 24" | 22.12" | |
| Model | ||||||||
| LP6 | - Linear Polarization Fixed Length Pipe Probe with Flange | |||||||
| ¦ | Flange Size | |||||||
| ¦ | 1 | - 1" Flange | ||||||
| ¦ | 2 | - 1 1/2" Flange | ||||||
| ¦ | 3 | - 2" Flange | ||||||
| ¦ | 4 | - 3" Flange | ||||||
| ¦ | 5 | - 4" Flange | ||||||
| ¦ | 7 | - 6" Flange | ||||||
| ¦ | 8 | - 2 1/2" Flange | ||||||
| ¦ | 9 | - 3/4" Flange | ||||||
| ¦ | ¦ | Probe Body Material | ||||||
| ¦ | ¦ | 22 | - 316 | |||||
| ¦ | ¦ | 44 | - C276 | |||||
| ¦ | ¦ | ¦ | LP Electrode Options | |||||
| ¦ | ¦ | ¦ | 2 | - Two-electrode integral type | ||||
| ¦ | ¦ | ¦ | ¦ | Flange Pressure Rating | ||||
| ¦ | ¦ | ¦ | ¦ | 1 | - 150 lb. | |||
| ¦ | ¦ | ¦ | ¦ | 2 | - 300 lb. | |||
| ¦ | ¦ | ¦ | ¦ | 3 | - 600 lb. | |||
| ¦ | ¦ | ¦ | ¦ | 4 | - 1200 lb. | |||
| ¦ | ¦ | ¦ | ¦ | 5 | - 1500 lb. | |||
| ¦ | ¦ | ¦ | ¦ | 6 | - 900 lb. | |||
| ¦ | ¦ | ¦ | ¦ | ¦ | Seal Type | |||
| ¦ | ¦ | ¦ | ¦ | ¦ | 1 | - Glass | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | Length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 12 | - 10.12 inches max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 18 | - 16.12 inches max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 24 | - 22.12 inches max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | Options | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 000 | - None |
| LP6 | 2 | 22 | 2 | 1 | 1 | 12 | 000 |
Example of Probe Ordering # |
Electrode Part Number - EL400XXX2800000 (XXX - use Code in Alloy
Chart)
LPR probe electrodes are replaceable and sold separately. (See Electrodes.)
| Alloy Chart | ||
| Code | Description | UNS # |
| 375 | C1010 | G10100 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
| 159 | 316L S.S. | S31603 |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
Not all alloys are available with all electrode types and seals.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
