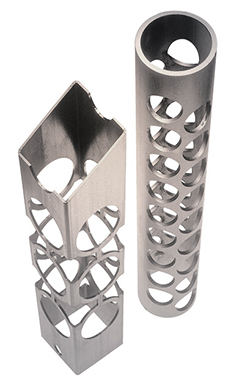

Laser Tube Cutting Services Laser tube cutting services from Alabama Laser are performed with four laser systems designed for cutting round, square, rectangular, flat, oval, and virtually any other type of tubes.





Round tubing:
Maximum O.D. - 10"  (min. 1/2")


Square tubing:
Side dimensions up to 8"


Maximum tube wall thickness:
5/8" carbon steel
1/4" stainless & aluminum

Laser Tube Cutting Services
Photo courtesy BLM-Adige USA
Laser Tube Cutting Services



Integrated Flow Drilling & Tapping

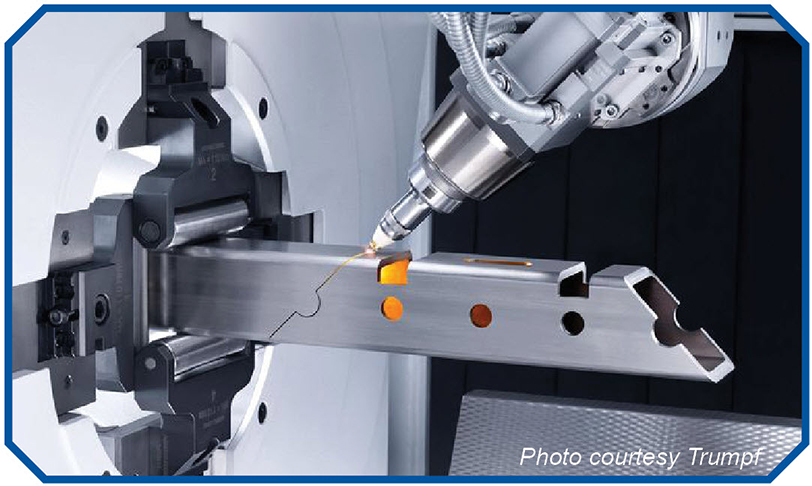

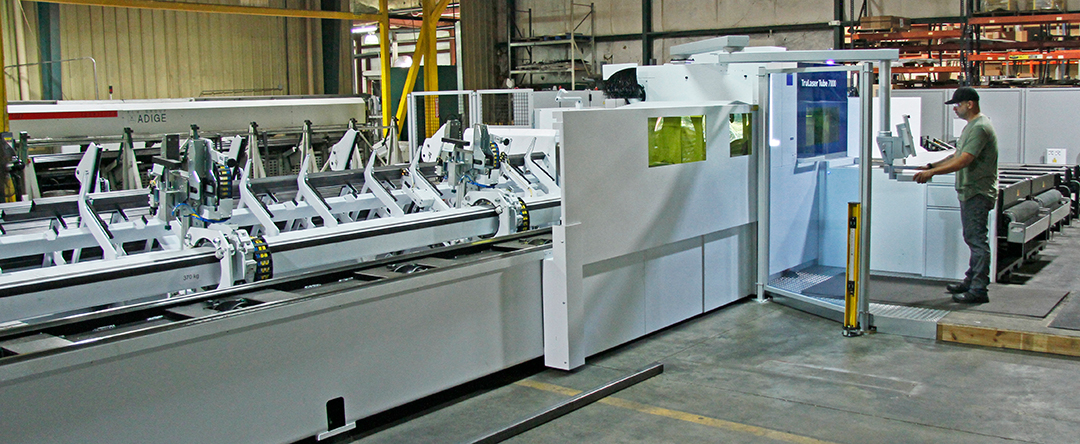

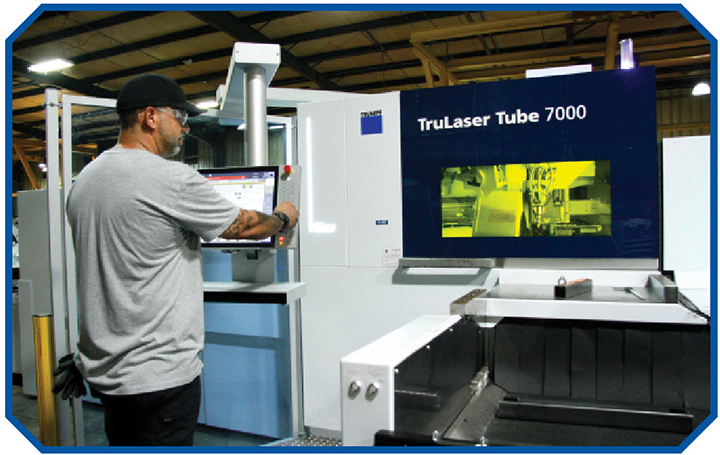

Our new TruLaser Tube 7000 fiber laser system features additional machining processes such as flow drilling and tapping which are integrated into the system.

This allows for multiple operations to be done on one machine without having to send the part to a secondary machine shop operation.

Laser Tube Cutting Services
Laser Tube Cutting Services - Flow Drilling Laser Tube Cutting Services - Flow Drilling Laser Tube Cutting Services - Flow Drilling

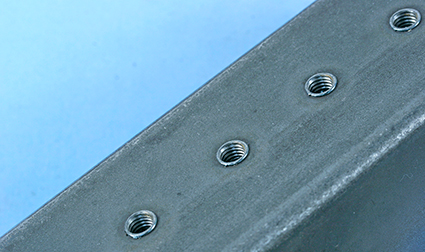

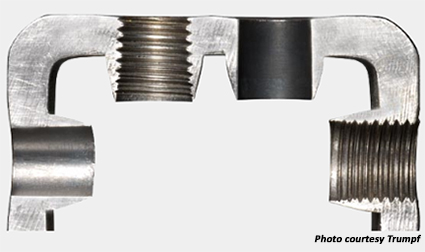

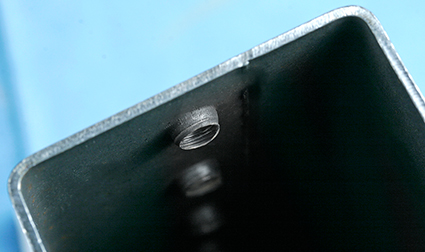

Flow drilling can be used on thin wall tube (up to .120”) where threaded holes are needed. The flow drill process builds up mass at the hole, and then hard tooling performs the threading operation.

Another application would be on projects where threaded inserts are added to the cut holes. Instead of having to weld or install these in place, the threaded holes can be processed on the tube laser in one machine operation cycle. This eliminates having to install inserts and the possibility of the insert spinning due to improper installation.

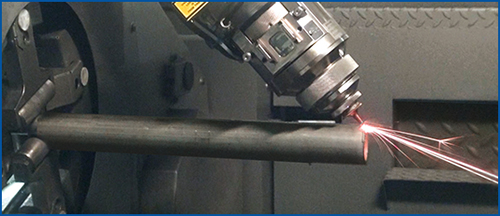

Laser Tube Cutting Services Laser tube cutting system with tilting axis allows for beveled cuts / chamfered hole cutting capabilities.

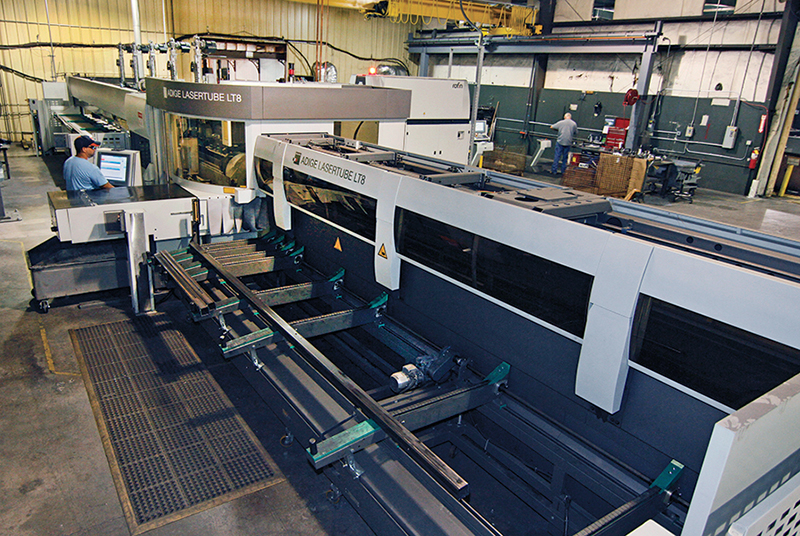

Our laser tube cutting systems allow storage of tube bundles and can automatically load and position tubes with lengths between 10.5' and 30' without operator intervention.

Shorter and longer tube lengths can be loaded manually.

Laser tube cutting services

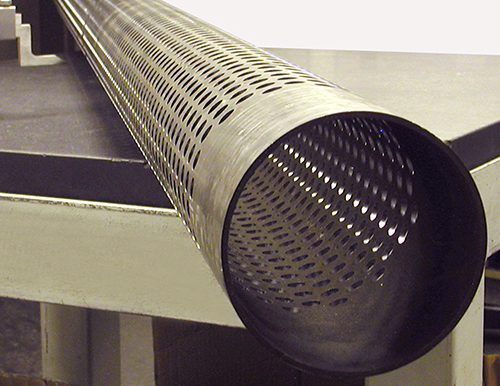

Laser cut tube - 9 feet. long / 3,000 holes
Laser Tube Cutting Services


Laser Tube Cutting Services
Laser Tube Cutting Services

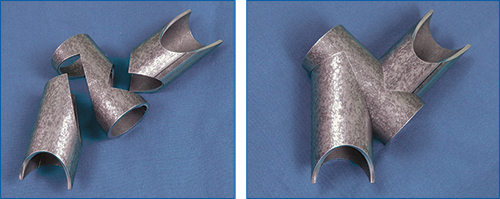

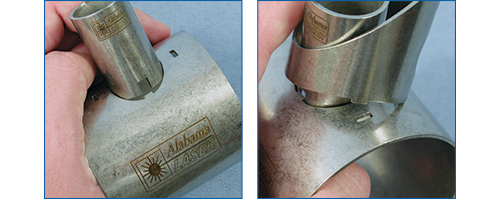

Coping Capabilities with Laser Tube Cutting Tab & Slotting with Laser Tube Cutting



Laser Tube Cutting Services Laser Tube Cutting Services Laser Tube Cutting Services

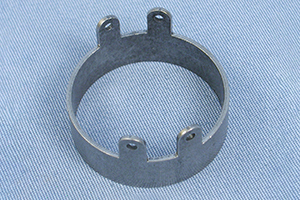

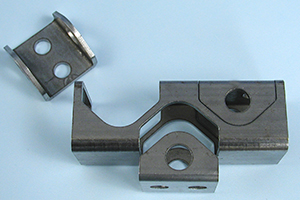

Brackets laser cut from tubing CNC swiss screw
machining = 10 min.
Laser tube cutting = 56 sec.
Conventional machining = multiple processes
Laser tube cutting = only 1 cycle

Photo at the top of this page courtesy BLM-Adige USA.
