MS4500E High-Resolution ER Data Logger

View PDF version
User's Manual in PDF
Instrinsic Safety Certifications

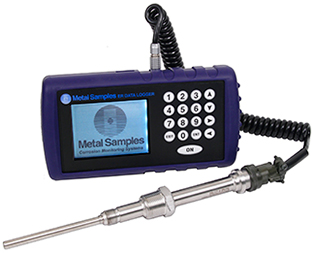

The MS4500E is a hand-held, battery-powered, corrosion meter capable of measuring and storing data from all types of electrical resistance (ER) corrosion probes. The instrument is light weight, microprocessor-based, and features a simple, menu-driven interface using a keypad and a backlit graphical LCD display.

Corrosion rate measurements are made using the electrical resistance method. Essentially, the instrument measures the resistance of the probe element which changes over time, as metal loss occurs. The rate of change is directly proportional to corrosion rate.


Probe shown in photo not
included with corrosion meter

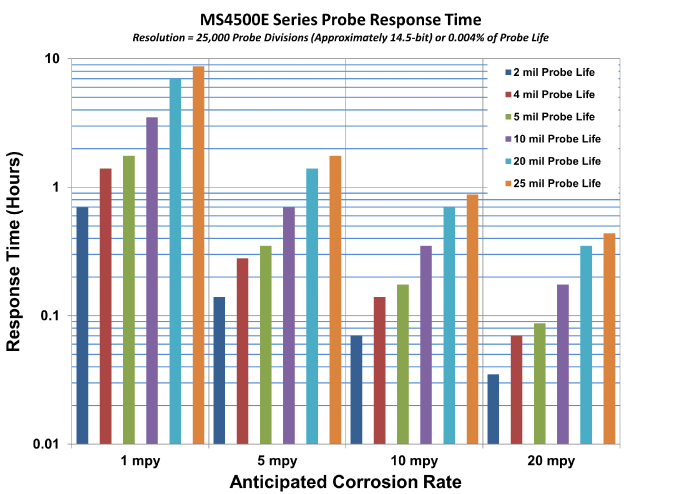

This method finds a wide variety of applications since it can be used in conductive and nonconductive environments such as petroleum, chemical, water, soil, or even atmosphere. The new high-resolution measurement of the MS4500E detects smaller increments of metal loss, providing faster response than traditional ER instruments.

After taking a reading, the instrument displays metal loss in mils and corrosion rate in mils per year (mpy). The reading can then be stored to memory or discarded. All stored readings are automatically time and date stamped. Readings are stored to non-volatile Flash memory which retains data without the need for a battery backup.

On-screen charting Transfer data directly to USB Flash drive

The MS4500E can store 16,000 readings per probe on up to 250 different probes (4 million total). Stored data can be downloaded directly to a USB Flash (“jump”) drive in non-hazardous areas. Data can be opened and charted using the provided Corrosion Data Management software, or can be imported into any standard data analysis (spreadsheet) program such as Microsoft Excel. Data can also be reviewed and charted on the instrument’s LCD display for quick reference.

Technical Specifications

Model
MS4500E - Handheld ER Corrosion Data Logger

Physical Data
Instrument Weight*: 1.71 lb. (0.78 Kg)
Total Weight w/ Case & Accessories: 6.96 lb. (3.16 Kg)
Instrument Dimensions*: 8.57" H x 4.54" W x 2.20" D (21.77cm x 11.53cm x 5.59cm)
Carrying Case Dimensions: 14.50" H x 11.38" W x 5.88" D (36.83cm x 28.89cm x 14.92cm)
Operating Temperature: -4° to 140°F (-20° to 60°C)
Storage Temperature: -4° to 158°F (-20° to 70°C)

Performance Data
Measurement Type: ER measurement using any standard ER probe types
Preferred probe types: Cylindrical, Flush (Large)
Compatible probe types: Tube Loop, Wire Loop, Flush (Small)
Range: 0-25,000 probe life units (displayed as 0.00 to 1000.00 PLU's in 0.04 increments)
Resolution: 0.004% of Probe Life
Repeatibility: +/- 0.1% of Full Scale

Electrical Data
Power Requirements: Four AA Batteries
Maximum Probe Cable Distance: 200 ft (61 m)
Download Method: Directly to USB Flash drive (in non-hazardous areas only)

Hazardous Location Certifications - Intrinsic Safety

Intrinsically safe for use in the following areas:
II 1 G Ex ia IIC T4 Ga
-25° C ≤ Ta ≤ +60° C
Class I, Zone 0, AEx ia IIC T4 Ga
-25° C ≤ Ta ≤ +60° C


Conforms to the following standards:
ANSI/UL Std. 60079-0, 60079-11, 61010-1
Cert. to CAN/CSA Std. 60079-0, 60079-11 &
CAN/CSA C22.2 No. 61010-1
ATEX Certificate No: ITS15ATEX28214X
IECEx Certificate No: ITS 15.0009X

Special Features
  • High resolution ER measurement for rapid response
  • Data storage capacity of 16,000 readings per probe on 250 different probes (4 million total)
  • Backlit graphical LCD display (320 x 240 pixel resolution)
  • On-screen charting
  • Automatic data-logging
  • Non-volatile Flash memory
  • Multilingual menu (English, Spanish, Portuguese, French)
  • Portable

Included Accessory Items
Carrying Case, Probe Cable (1' coiled - 6' extended), Meter Prover, Operation Manual, Corrosion Data Management Software, Protective Boot
