Model IP4000 |
Also see: |

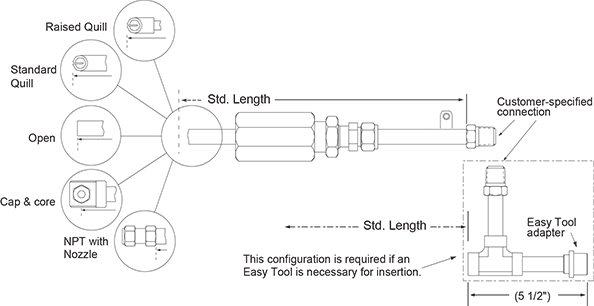

Model IP4000 Injection & Sampling System is a retractable unit commonly used in field and plant applications. A specially designed packing gland is used with the unit for insertion into or retraction from a pressurized system without a process shutdown. The unit is designed to mount onto a 1" piping system, but can easily be adapted to fit your specific requirements. The unit assembly consists of a packing gland and an insertion rod with an injection/sampling fitting. The fitting, which is threaded or welded to the end of the rod, can be either a quill, open, cap & core, or nozzle assembly type. A safety chain is also provided to prevent blowout. In systems with pressure over 150 psi, an adaptor for the Easy Tool may be added to the unit. Standard packing material in the packing gland is Teflon®, however, grafoil packing can be provided for high temperature applications. Model IP4000 units are available in different lengths and materials.
| Specifications:
Body - 316 Stainless Steel Temperature Rating - Teflon® - 500° F / 260° C Grafoil - 850° F / 454° C Pressure Rating - 1500 PSI / 102 Bar Mounting - 1" Full Port Valve (Min.) |
STD. LENGTH | I.L. (max) |
| 24" | 16" | |
| 30" | 22" | |
| 36" | 28" | |
| 42" | 34" |
The Easy Tool is required for probe insertion or retraction in systems with pressure over 150 pounds.
See
Retractable Systems video.
See Packing Gland Instructions and Safety Chain Instructions.
See Length Calculation and Accessories for Retractable Probes.
See Canadian Registration Numbers (CRNs).
| Model | ||||||
| IP45 | - Injection & Sampling System 1" NPT Female Thread, Packing Gland with Teflon® | |||||
| IP75 | - Injection & Sampling System 1" NPT Female Thread, Packing Gland with Grafoil | |||||
| IPB7 | - Injection & Sampling System 1 1/2" NPT Male Swage Nipple (used with head, cap, core) | |||||
| IP00 | - Injection & Sampling System Replacement Insertion Rod | |||||
| ¦ | Mounting Material (Packing Gland & Rod) | |||||
| ¦ | 22 | - 316 | ||||
| ¦ | 44 | - C276 | ||||
| ¦ | ¦ | Injection Tip Option | ||||
| ¦ | ¦ | 000 | - N/A | |||
| ¦ | ¦ | 010 | - Quill (straight) | |||
| ¦ | ¦ | 020 | - Quill (raised) | |||
| ¦ | ¦ | 030 | - Open | |||
| ¦ | ¦ | 040 | - 1/4" NPT (female) with nozzle* | |||
| ¦ | ¦ | 050 | - Head with cap and core (9/16")* -- Must use Swage Nipple. | |||
| ¦ | ¦ | 060 | - 1/4" NPT (male) with nozzle* | |||
| ¦ | ¦ | 070 | - 3/8" NPT (male) with nozzle* | |||
| ¦ | ¦ | 090 | - 1/2" NPT (female) with nozzle* | |||
| ¦ | ¦ | ¦ | Tube Size | |||
| ¦ | ¦ | ¦ | 1 | - 3/8" | ||
| ¦ | ¦ | ¦ | 2 | - 1/2" | ||
| ¦ | ¦ | ¦ | 3 | - 5/8" | ||
| ¦ | ¦ | ¦ | ¦ | Length | ||
| ¦ | ¦ | ¦ | ¦ | 24 | - 16 inches max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | 30 | - 22 inches max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | 36 | - 28 inches max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | 42 | - 34 inches max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | ¦ | Dry End Mount Options | |
| ¦ | ¦ | ¦ | ¦ | ¦ | 01 | - Blanked off |
| ¦ | ¦ | ¦ | ¦ | ¦ | 02 | - 1/2" NPT |
| ¦ | ¦ | ¦ | ¦ | ¦ | 03 | - 3/4" NPT |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | |
| IP45 | 22 | 010 | 2 | 24 | 02 | Example of Probe Ordering # |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
* Nozzles must be ordered separately.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
