Hydraulic Hollow Plug Assemblies

View PDF version

for High Pressure Hydraulic Access Systems

The plug assembly screws into the access fitting body and seals the bore of the fitting to contain line pressure. Hollow plugs are used to mount corrosion monitoring devices that require wired connections: Electrical Resistance (ER), Linear Polarization Resistance (LPR) probes, and multiple specialized probes.

Hollow Plug:    Overall length - 5.5"/140mm       Weight - 2 lbs/0.9kg

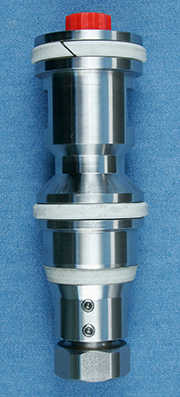

Hydraulic Hollow Plug Assembly
HA700961158

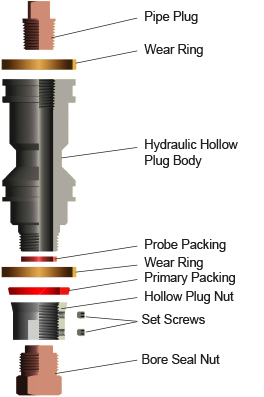

Description Part No. Material
Hydraulic Hollow Plug Body HA700312158 316 SS
Pipe Plug HA700697159 316 SS
Wear Ring (2) PR7211785 Glass filled PTFE
Primary Packing HA700266785 Glass filled PTFE
Hollow Plug Nut HA700302158 316 SS
Set Screw (2) 09158E1032ST0187 316 SS
Probe Packing HA700277785 Glass filled PTFE
Hollow Plug Bore Seal Nut HA700311158 316 SS



Contact Metal Samples Company for pricing and availablility.
