Retrieval Tool

View PDF version
User's Manual in PDF

for High Pressure (HP™ and MH™) Access Systems

The Metal Samples retrieval tool and service valve can be used to insert or retrieve sensors from process systems operating under full pressure (up to 6000 psi). It can be used to retrieve a variety of sensors from the MH™ and HP™ high presure access systems, or any other generic high pressure access system, when used with an inexpensive adapter. The Metal Samples retrieval tool and service valve system incorporates the following unique features:

  • Side-wheel manipulation to allow safe operation.

  • No telescoping parts.

  • Positive indication of full insertion or retrieval of plug/sensor assembly to avoid operation errors.

  • Compact design to allow retrieval in minimum clearance areas.

  • Lightweight construction for single person operation.

  • Full compatibility with systems manufactured by other suppliers.

  • Quick-stab collet latch mechanism (MH system) for rapid operation.

The safety and ease of use of the retrieval tool and service valve system, coupled with its wide compatibility, speed, and precision of operation, simplifies retrieval operations.

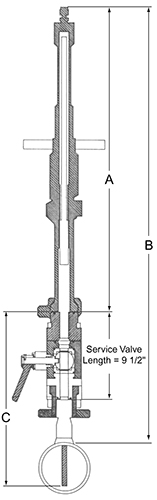

Figure 1. Retrieval Tool / Service Valve
Dimensional Schematic
Stroke required = 9.5" + Length of Plug + Attachment Length
Solid plug length = 2.5"
Hollow plug length = 3.75"




Description

Maximum Pipeline Size

4" 8" 12" 16" 20" 24" 30" 36" 40"
A Retrieval Tool Overall Length - inches 39 47 55 63 71 79 91 103 111
B Retrieval Tool & Service Valve Overall Length to PIpe OD (includes non-tee access fitting) - inches 54 62 70 78 86 94 106 118 126

C

Stroke Available - inches 18.5 22.5 26.5 30.5 34.5 38.5 44.5 50.5 54.5
  Retrieval Tool Weight - lbs. 47 52 57 62 67 72 83 92 97
  Case / Tool Kit Weight - lbs. 37 37 40 40 43 43 48 48 53
  Total Weight - lbs. 84 89 97 102 110 115 131 140 150
  Total Cubage - ft3 2.4 2.4 2.9 2.9 3.5 3.5 4.3 4.3 4.8

Table 1. Dimensions from Schematic
All retrieval tools have a body material of 17-4PH HH1150 and a working pressure of 6000 psi.
For severe corrosive environments, retrieval tools made from I825 can be supplied.

MH and HP are trademarks of Metal Samples.


The exploded view of the retrieval tool shown below in Figure 3 illustrates some of the exclusive safety and convenience features available only from Metal Samples.

The retrieval tool is constructed to comply with NACE MR0175 for a working pressure of 6000 psi. The standard tool is suitable for operation between -15°F and 400°F (-26°C and 204°C). A low temperature version is available upon request for operation between -30°F and 250°F (-34°C and 121°C). Optional seal materials for higher and lower temperature ratings are available. Please contact your Metal Samples sales representative for options.

The retrieval tool is normally supplied as a kit complete with field service case, assembly accessories and one O-ring seal kit. Tool size, or stroke, is determined by the combined maximum pipeline size and the maximum height of any access fitting assembly with which the tool will be used. The stroke is defined as the distance that the plug/sensor assembly must travel to permit the service valve to close.

Metal Samples retrieval tool part numbers for various pipeline sizes are given below. If the required pipeline size falls between two size ranges, the larger tool should be selected.

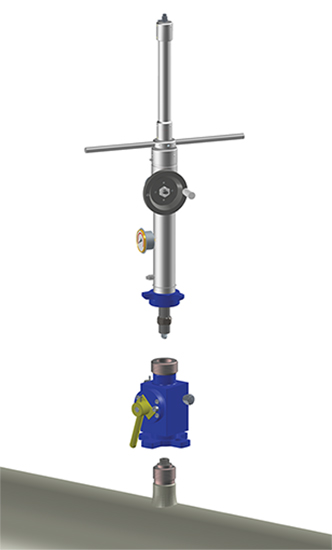

  Fig. 2 Retrieval Tool and Service Valve
Retrieval Tool Part Numbers
Part #

Pipeline Size

HA10004X 4"
HA10008X 8"
HA10012X 12"
HA10016X 16"
HA10020X 20"
HA10024X 24"
HA10030X 30"
HA10036X 36"
HA10040X 40"

X = 4 (HP adapter), 5 (MH adapter), 6 (HP adapter for low temperature)
Retrieval Tool Part Accessories
Part # Description
HA104005 Diverter Hose 10 Feet
HA104003 Hollow Plug Moisture Seal Plug
HA104004 Hollow Plug Overshot Adapter
HA102016 HP Thread Tap Assembly for Repair of Damaged Threads
HA102036 HP Thread Die Assembly
HA102038 HP Thread Chaser for Cleaning of Threads
HA102009 MH Thread Chaser Assembly for Cleaning of Threads
HA104001 Retriever Backpressure Kit - pneumatic
HA104002 Pipe Plug Retriever Adapter
HA104000 Retriever Backpressure Kit - hydraulic
SWS0017 Stainless Steel Wire Brush
HA104006 Surge Tube Assembly


Retrieval Tool

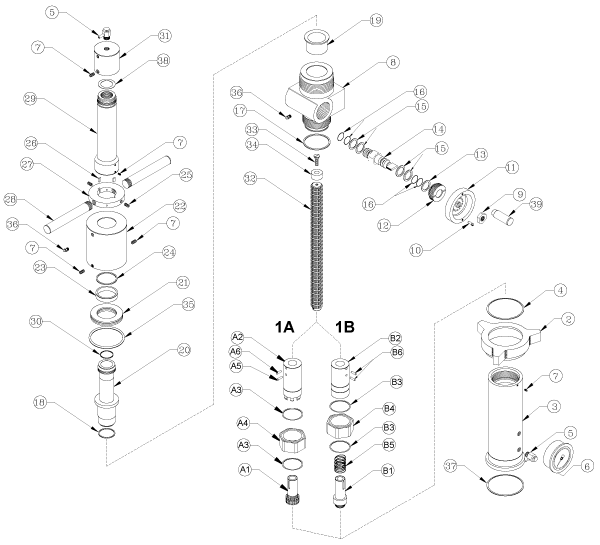

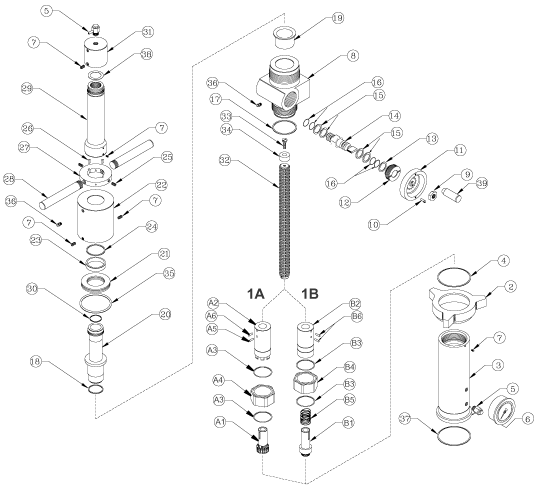

Figure 3. Retrieval Tool Exploded View



Item

Qty

Description

Part #

Material

1A 1 MH Adapter Assembly PS5554158 As Listed
A1 1 Collet Latch PR6297110 17-4PH
A2 1 MH Spanner PR6296158 316 SS
A3 2 Spirol Ring PR6243138 302 SS
A4 1 Adapter Guide PR6244158 316 SS
A5 1 Set Screw 09141E2520CP1000 SS
A6 1 Spirol Pin PR6247141 SS
1B 1 HP Adapter Assembly PS5552158 As Listed
B1 1 Landing Screw PR6242159 316 SS
B2 1 HP Adapter Body PR6246158 316 SS
B3 2 Spirol Ring PR6243138 302 SS
B4 1 Adapter Guide PR6244158 316 SS
B5 1 Spring PR6245599 IN 600
B6 2 Spirol Pin PR6247141 SS
2 1 Hammer Union PR6290C25 A350 LF2
3 1 Lower Tube PR6264G86XX* 17-4PH HH1150
4 1 Spirol Ring PR6265138 SS
5 2 Bleed Valve PR6359158 316 SS
6 1 Pressure Gage PR7020158 316 SS
7 5 Set Screw 09158E3716CP0375 SS
8 1 Gear Box Assembly PS5551 Cast 316L SS
9 1 Hand Wheel Nut + 09141E7510JN0000 304 SS
10 1 Lock Pin + PR6291139 SS
11 1 Handwheel Body + PR6289338 Aluminum
12 1 Shaft Retainer PR6267G86 17-4PH HH1150
13 1 O-Ring PR7431834 Viton®
14 1 Gear Shaft PR6269110 17-4PH
15 4 Thrust Washer PR6270158 316 SS
16 4 O-Ring PR7430834 Viton®
17 1 O-Ring PR7433834 Viton®
18 1 Omniseal PR6251 Fluorocarbon
19 1 Flange Bearing PR6239 P/M Bronze
20 1 Drive Tube PR6272G86 17-4PH HH1150
21 1 Thrust Bearing PR6273207 AISI 52100
22 1 Bearing Cap PR6274G86 17-4PH HH1150
23 1 Sleeve Bearing PR6275 P/M Bronze
24 1 O-Ring PR7432834 Viton®
25 2 Set Screw 09141E3716CP0500 SS
26 2 Key PR6276141 304 SS
27 1 Drive Ring PR6277158 316 SS
28 2 Handle PR6278158 316 SS
29 1 Upper Tube PR6279G86XX** 17-4PH HH1150
30 1 O-Ring PR6280834D90 Viton®
31 1 End Cap PR6281G86 17-4PH HH1150
32 1 Spline Rack PR6282G86XXXX*** 17-4PH HH1150
33 1 Flat Head Screw 09141E3716FH0500 SS
34 1 End Stop PR6283158 316 SS
35 1 O-Ring PR7429834 Viton®
36 2 Grease Fitting PR6427139 303 SS
37 1 O-Ring PR7439834 Viton®
38 1 O-Ring PR7428834 Viton®
39 1 Handwheel Handle + PR6288A69 Aluminum

* XX is 10" greater than the Retrieval Tool length; i.e. XX = 26 if Retrieval Tool length is 16".
** XX is 11" greater than the Retrieval Tool length; i.e. XX = 15 if Retrieval Tool length is 4".
*** XXXX is 18.56" greater than the Retrieval Tool length; i.e. XXXX = 3456 if Retrieval Tool length is 16".
+ This item included in Handwheel Assembly - Part # PS5556338.

If replacement parts are required, use the part numbers listed above and specify length where necessary.

Viton® is the standard O-ring material, however other materials are available. Consult your Metal Samples representative for the options available with non-standard materials.


Viton® is a registered trademark of DuPont Dow Elastomers.

Contact Metal Samples Company sales department for pricing and availability.
