Protective Covers

View PDF version

for High Pressure (HP™ and MH™) Access Systems

High Pressure Access Systems - Protective Covers*



Description Application Part No. Material Weight

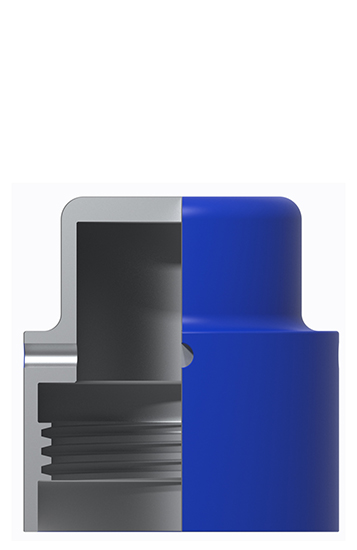

Non-Pressure Rated
Cover Without Hole
Intermittent Monitoring - Chemical Injection HA700734C25 A350 LF2
Carbon Steel
2.5 lbs.
(1.6 kg)
Non-Pressure Rated
Cover With 1/2" NPT Hole
Continuous Monitoring HA700732C25 A350 LF2
Carbon Steel
2.0 lbs.
(0.9 kg)
Non-Pressure Rated
Cover Without Hole
Intermittent Monitoring HA700436709 Nylon 0.5 lbs.
(0.2 kg)
Non-Pressure Rated
Cover With 1/2" NPT Hole
Continuous Monitoring HA700435709 Nylon 0.5 lbs.
(0.2 kg)
Heavy Duty Pressure
Rated Cover Without Hole
Intermittent (rated for 4000 PSI) HA700735C25 A350 LF2
Carbon Steel
9 lbs.
(4.1 kg)
Heavy Duty Pressure
Rated Cover With 1/2" NPT Hole
Continuous Monitoring - provides a secondary seal and allows for probe adaptor (rated for 4000 PSI) HA700731C25 A350 LF2
Carbon Steel
9 lbs.
(4.1 kg)
Heavy Duty Pressure Rated Cover & Bleed Valve Continuous Monitoring - provides a secondary seal (rated for 4000 PSI) HA700480C25 A350 LF2
CS (cover), 316 SS (bleed valve)
9 lbs.
(4.1 kg)

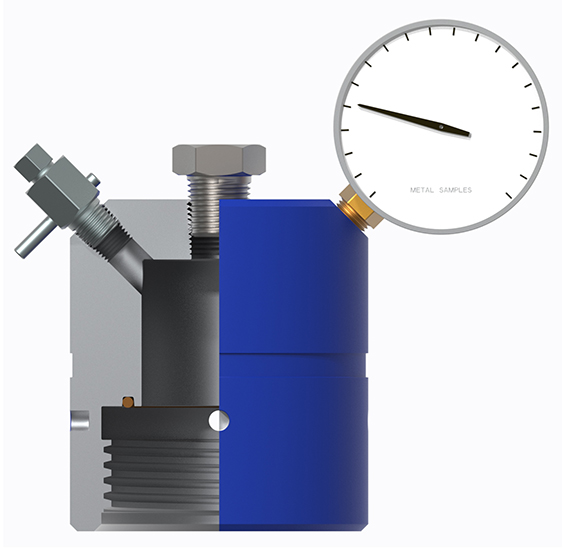

Heavy Duty Pressure Rated, Bleed Valve, & Pressure Gauge Continuous Monitoring - provides a secondary seal (rated for 4000 PSI) HA700481C25 A350 LF2
CS (cover), 316 SS (bleed valve & gauge)
10 lbs.
(4.5 kg)
Heavy Duty Pressure Rated Cover, Bleed Valve, Pressure Gauge, & 1/2" NPT Hole Continuous Monitoring - provides a secondary seal (rated for 4000 PSI) HA700482C25 A350 LF2
CS (cover), 316 SS (bleed valve & gauge)
9 lbs.
(4.1 kg)
Heavy Duty Pressure Rated Cover w/ Bleed Valve & 1/2" NPT Hole Continuous Monitoring - provides a secondary seal (rated for 4000 PSI) HA700483C25 A350 LF2
CS (cover), 316 SS (bleed valve)
9 lbs.
(4.1 kg)
Heavy Duty Pressure Rated Cover w/ Pressure Gauge & 1/2" NPT Hole Continuous Monitoring - provides a secondary seal (rated for 4000 PSI) HA700484C25 A350 LF2
CS (cover), 316 SS (gauge)
9 lbs.
(4.1 kg)

* Fire safe covers certified to API 6FB are also available.

Contact Metal Samples Company for pricing and availability.
