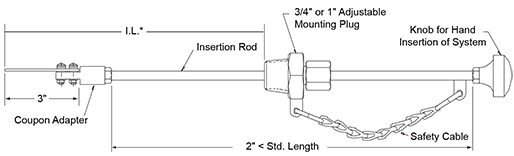

Model SR3000 coupon insertion system is an adjustable unit commonly used in the water treating industry. The system is designed to mount onto a 1" piping system, but can easily be adapted to fit your specific requirements. The system consists of an insertion rod with a coupon adapter. The standard assembly is available with 3/4" or 1" NPT threads on the mounting plug. A safety cable and safety nut are also provided to prevent blowout. Several coupon holders and lengths are available.
Note: Since the adjustable mounting plug on the SR3000 is not a packing gland, some system leakage may occur if retracted or inserted into a pressurized system. Therefore, this model is suggested for use only in non-hazardous systems.
*The insertion length (I.L.) shown here is based on a standard Metal Samples Corrosion Monitoring Systems part #CO118 coupon and may vary for other coupons depending on the coupon length and hole location.
| Specifications:
Body - 316 Stainless Steel Temperature Rating - 100° F Pressure Rating - 125 PSI / 8.5 Bar (TFE ferrule) or 1500 PSI / 102 Bar (Metal ferrule) Mounting - 1" Full Port Valve (Min.) |
STD. LENGTH | I.L. (max) |
| 18" | 16.5" | |
| 24" | 22.5" | |
| 30" | 28.5" | |
| 36" | 34.5" | |
| 42" | 40.5" |
| Model | |||||
| SR32 | - Low Pressure Adjustable Coupon Insertion System with 3/4" NPT | ||||
| SR33 | - Low Pressure Adjustable Coupon Insertion System with 1" NPT | ||||
| ¦ | Insertion Rod & Mounting Material | ||||
| ¦ | 22 | - 316 | |||
| ¦ | 44 | - C276 | |||
| ¦ | ¦ | Coupon Options | |||
| ¦ | ¦ | 010 | - Fits P/N CO100 | ||
| ¦ | ¦ | 030 | - Fits P/N CO118 | ||
| ¦ | ¦ | ¦ | Length | ||
| ¦ | ¦ | ¦ | 18 | - 16.5 inches max. insertion length | |
| ¦ | ¦ | ¦ | 24 | - 22.5 inches max. insertion length | |
| ¦ | ¦ | ¦ | 30 | - 28.5 inches max. insertion length | |
| ¦ | ¦ | ¦ | 36 | - 34.5 inches max. insertion length | |
| ¦ | ¦ | ¦ | 42 | - 40.5 inches max. insertion length | |
| ¦ | ¦ | ¦ | ¦ | Coupon Adapter and Insulators | |
| ¦ | ¦ | ¦ | ¦ | 1 | - Coupon adapter same material as rod, Teflon® insulators |
| ¦ | ¦ | ¦ | ¦ | 2 | - Teflon® coupon adapter, Teflon® insulators |
| ¦ | ¦ | ¦ | ¦ | 4 | - Coupon adapter same material as rod, nylon insulators (standard) |
| ¦ | ¦ | ¦ | ¦ | 5 | - Nylon coupon adapter, nylon insulators |
| ¦ | ¦ | ¦ | ¦ | ¦ | |
| SR32 | 22 | 030 | 18 | 4 | Example of Probe Ordering # |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
