ASTM F38 (Method B) Test Assembly

View PDF version
ASTM F38 Method B Test Assembly includes all equipment necessary for Creep Relaxation testing. Yokes for the ASTM F607 Test Apparatus are also available.

TF2406 - ASTM F38 Method B Test Assembly


TF2405 - ASTM F38 Method B
Bolt Calibration Apparatus

Ordering Information

Part # TF2406
ASTM F38 Method B Test Assembly
Consists of Dial Indicator (1), Dial Indicator Adapter (1), Mounting Plate (1), Custom Wrench (1), C4140 Steel Platen (10), C4140 Preconditioned & Calibrated Bolt (5), C4140 Hex Nut (5), and C4140 Washer (5)
Quantity:

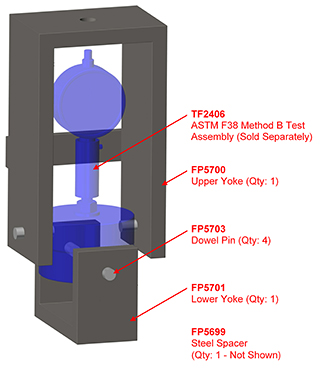

Part # TF2405
ASTM F38 Method B Bolt Calibration Apparatus
Consists of Upper Yoke (1), Lower Yoke (1), Steel Spacer (1),
and Dowel Pins (4)
Quantity:

Spare Parts
Part # Description
FP5759 Dial Indicator
Quantity:
FP5704 Dial Indicator Adapter
Quantity:
FP5760396 Preconditioned & Calibrated Bolt Set (Includes Bolt with Pin, Hex Nut, and Washer) - C4140 Steel
Quantity:
FP5708396 Platen - C4140 Steel
Quantity:
FP5705396 3/8-24 Hex Nut - C4140 Steel
Quantity:
FP5706396 3/8" Washer C4140 Steel
Quantity:
FP5707396 3/8-24 x 3" Bolt & Pin Assembly, Uncalibrated - C4140 Steel
Quantity:
FP5760608 Preconditioned & Calibrated Bolt Set (Includes Bolt with Pin, Hex Nut, and Washer) - Inconel 718
Quantity:
FP5709608 Platen - Alloy I718
Quantity:
FP5711608 3/8-24 Hex Nut - Alloy I718
Quantity:
FP5712608 3/8" Washer - Alloy I718
Quantity:
FP5710608 3/8-24 x 3" Bolt & Pin Assembly, Uncalibrated - Alloy I718
Quantity:
FP5713 Mounting Plate
Quantity:
FP5714 Custom Wrench
Quantity:
FP5700 Upper Yoke
Quantity:
FP5701 Lower Yoke
Quantity:
FP5703 Dowell Pins
Quantity:
FP5699 Steel Spacer
Quantity:




Note: Metal Samples manufactures test apparatus in accordance with ASTM standards. Metal Samples does not conduct test procedures and therefore does not attempt to address testing considerations. Please consult ASTM standards for safety guidelines and additional information regarding testing procedures.
