Model HCA200

Bio-Probe

View PDF version

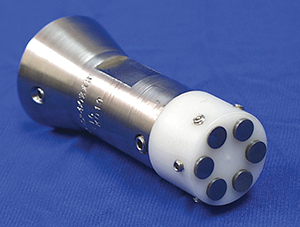

Model HCA200 bio-probe is used to collect samples of bacteria in gas and oil producing systems. The bacterial population on a system’s metal surface is more relevant to corrosion than the bacterial population in the system’s fluids. This is because only surface or sessile bacteria cause corrosion. Thus a corrosion control program is ineffective unless it kills those bacteria which have formed attached biomasses. The same bacteria which cause problems in gas pipelines, tanks, vessels, oil wells and water handling systems attach to the bio-probe’s sample element. And since the bio-probe is designed for high pressure access systems, common throughout the oil field, it becomes a convenient and economical way for sampling corrosion-causing biological activity.

Bio-Probe
Part # Description
HCA2158XXXX Bio-Probe Assembly with Delrin Holder
(XXXX = insertion length in inches, stated in 2 decimal place format)
EL4383770900000 Biological Sample Elements, C.S.
HA700645158 Solid Plug, MHTM High Pressure Access System, 316
HA700644158 Solid Plug, HPTM High Pressure Access System, 316



Item #

Description Material
1 Heavy duty cover Carbon steel
2 O-ring VITON®
3 Solid plug 316
4 Primary packing
(primary seal)
25% G.F. Teflon®
5 Access fitting Carbon steel
6 Bacteria sample holder Delrin
7 Bacteria fixture 316
8 O-ring VITON®
9 Sample element "Bullet" Mild steel or brass
