Corrosion Data Management Software

Download Corrosion Data
Management Software - Version 3.1.16



Check For Updates | View Users Manual | FAQ's

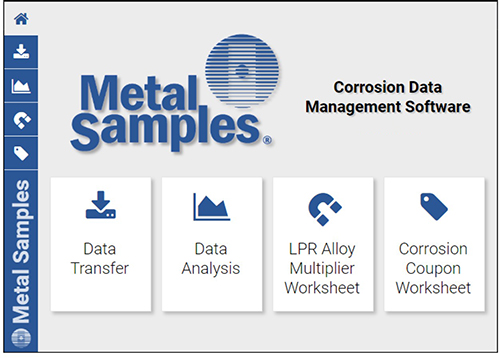

Corrosion Data Management Software

Metal Samples Corrosion Data Management Software (CDMS) is a collection of utilities designed to assist the corrosion specialist in gathering and analyzing corrosion data from Metal Samples probes, instruments, and coupons. It includes an Instrument Download Center, a Data Analysis utility, an LPR Alloy Multiplier Worksheet, and a Corrosion Coupon Worksheet.

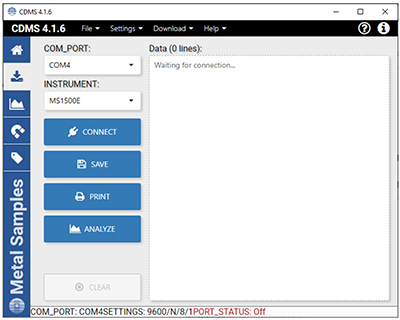

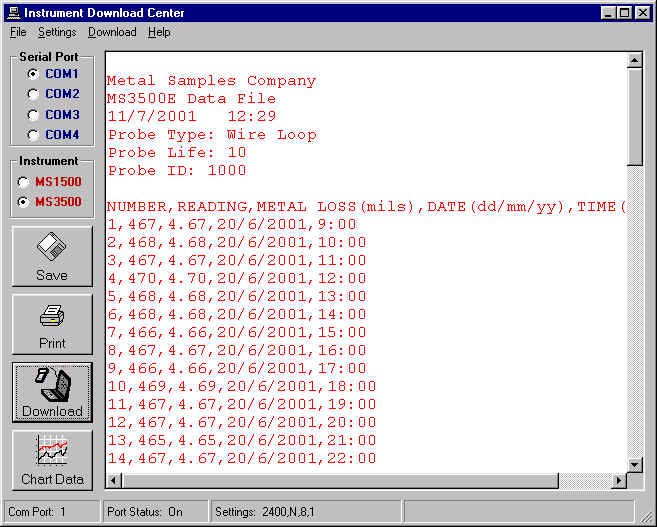

Click to enlarge Instrument Download Center

The Instrument Download Center is used to retrieve data from Metal Samples data loggers. It offers a simple user interface, and automatic port configuration. Once data has been downloaded from an instrument, it can be saved, printed, and charted.



Click to enlarge
Click to enlarge

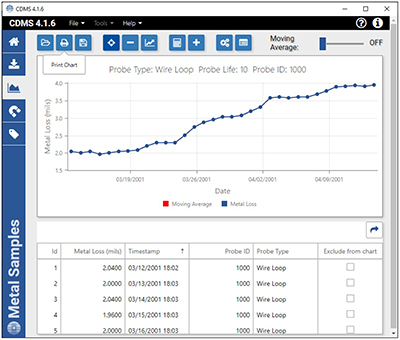

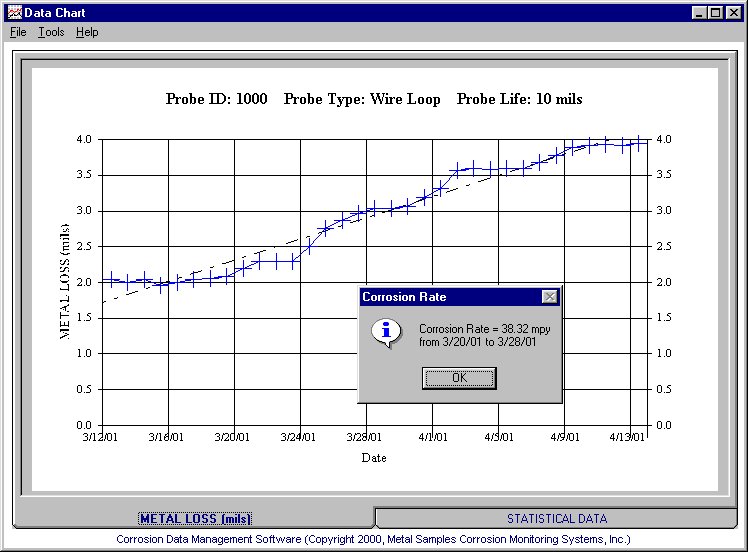

Data Analysis

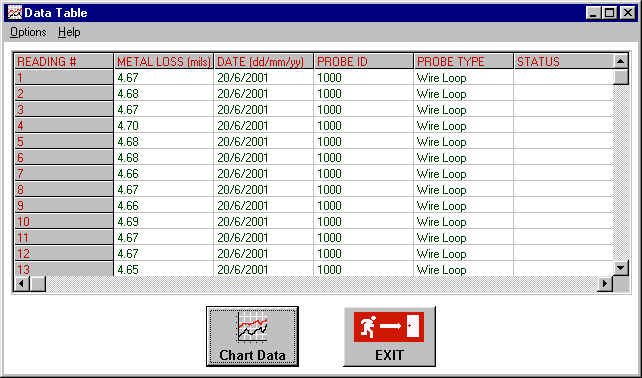

The Data Analysis utility provides a simple way to chart data from Metal Samples data loggers. Data is loaded into a table which allows the user to review the data, and to select the range of data to chart. After a chart is generated, chart tools allow the user to modify the appearance of the chart, create footnotes, zoom in and out, view mean and trend lines, and calculate corrosion rate. Charts can be printed, and can be exported for use in other applications.

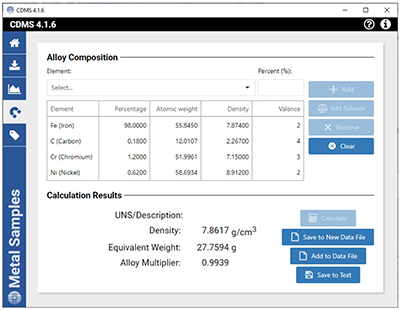

Click to enlarge LPR Alloy Multiplier Worksheet

The LPR Alloy Multiplier Worksheet can be used to generate alloy multipliers for the 2-Electrode LPR measurement system. Simply enter the alloy composition by selecting elements from a drop-down list, then entering their content percentage. The program will automatically calculate the density, equivalent weight, and alloy multiplier for the alloy. Worksheets can be printed, saved individually, or saved to a database file.

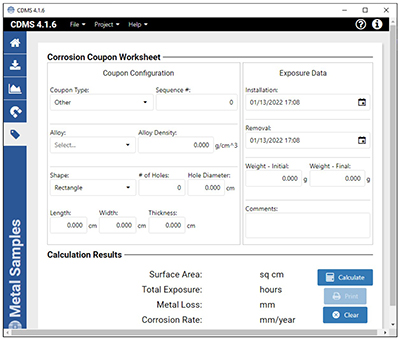

Click to enlarge Corrosion Coupon Worksheet

The Corrosion Coupon Worksheet is a simple, step-by-step method for calculating metal loss and corrosion rate from weight loss coupons. The user is prompted for alloy density, coupon dimensions, and exposure data. From these values, the software calculates metal loss and corrosion rate. Coupon sequence numbers and comments can be added to a worksheet. Each worksheet can be printed, saved individually, or saved to a database file.To simplify use, a list of standard Metal Samples coupons are built into the program. If one of these coupons is selected from the drop-down list, its dimensions are automatically entered in the appropriate fields.


To run the Corrosion Data Management Software, you need a PC that meets the following requirements:

  • Pentium® class processor or better
  • Windows® XP, Vista, Windows 7, Windows 8, and Windows 10, 32- or 64-bit operating system
  • 16 MB of RAM
  • 10 MB of available hard-disk space
  • Monitor with 800 x 600 or greater resolution
  • Mouse or pointing device
  • Available RS-232 serial or USB port (for instrument download)

To find out more about Metal Samples Corrosion Data Management Software, or to get pricing and availability, please contact our sales department.
