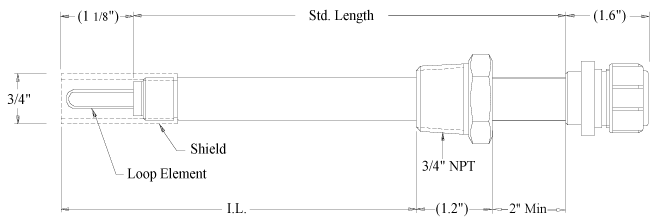

Model ER2000 is a fixed-length, electrical resistance probe with a 3/4" NPT pipe
plug. The probe requires process isolation or process shutdown to install and a threaded
pipe fitting to mount. The probe assembly consists of an insertion rod with an element, a
hermetically sealed connector, and a 3/4" NPT pipe plug, which are all welded in
place. A velocity shield can be provided if required. The insertion length (I.L.) is
calculated to the end of the shield and can be specified by the customer. For standard
probes, the maximum insertion length is given in the chart below. Several standard loop
elements are available to meet your specific needs.
| Specifications:
Probe Body - 316 Stainless Steel Element Seal - Glass or Teflon® Fill Material - Ceramic or Epoxy Temperature Rating - 500° F / 260° C Pressure Rating - 3000 PSI / 204 Bar Mounting - 3/4" NPT Pipe Plug |
STD. LENGTH | I.L. (max) |
| 6" | 5.13" | |
| 8" | 7.13" | |
| 12" | 11.13" | |
| 18" | 17.13" |
| Model | |||||||||||||||||
| ER2 | - Electrical Resistance Fixed Length Pipe Plug Probe | ||||||||||||||||
| ¦ | Pipe Plug Size | ||||||||||||||||
| ¦ | 2 | - 3/4" NPT Pipe Plug | |||||||||||||||
| ¦ | 3 | - 1" NPT Pipe Plug | |||||||||||||||
| ¦ | ¦ | Probe Body Material | |||||||||||||||
| ¦ | ¦ | 22 | - 316 | ||||||||||||||
| ¦ | ¦ | 44 | - C276 | ||||||||||||||
| ¦ | ¦ | ¦ | ER Element Options | ||||||||||||||
| ¦ | ¦ | ¦ | 00 | - WR40 Wire Loop - 40 mil thickness (10 mil useful probe life) | |||||||||||||
| ¦ | ¦ | ¦ | 10 | - WR80 Wire Loop - 80 mil thickness (20 mil useful probe life) | |||||||||||||
| ¦ | ¦ | ¦ | 20 | - TU04 Tube Loop - 4 mil thickness (2 mil useful probe life) | |||||||||||||
| ¦ | ¦ | ¦ | 30 | - TU08 Tube Loop - 8 mil thickness (4 mil useful probe life) | |||||||||||||
| ¦ | ¦ | ¦ | 80 | - SL05 Strip Loop - 5 mil thickness (1.25 mil useful probe life) | |||||||||||||
| ¦ | ¦ | ¦ | 90 | - SL10 Strip Loop - 10 mil thickness (2.5 mil useful probe life) | |||||||||||||
| ¦ | ¦ | ¦ | ¦ | Seal Type | |||||||||||||
| ¦ | ¦ | ¦ | ¦ | 1 | - Glass | ||||||||||||
| ¦ | ¦ | ¦ | ¦ | 2 | - Teflon® | ||||||||||||
| ¦ | ¦ | ¦ | ¦ | 3 | - Epoxy | ||||||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | Insertion Length | ||||||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | 06 | - 5.13 inches max. insertion length | |||||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | 08 | - 7.13 inches max. insertion length | |||||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | 12 | - 11.13 inches max. insertion length | |||||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | 18 | - 17.13 inches max. insertion length | |||||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | Element Alloy | |||||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | XXX | - See Code in Alloy Chart | ||||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ER Probe Options | ||||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 00 | - No shield | |||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 03 | - Shield | |||||||||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ||||||||||
| ER2 | 2 | 22 | 10 | 1 | 08 | 375 | 03 | Example of Probe Ordering # | |||||||||
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
| Alloy Chart | ||
| Code | Description | UNS # |
| 375 | C1010 | G10100 |
| 538 | 5Cr 1/2mo | K42544 |
| 541 | 9Cr 1mo | K90941 |
| 186 | 410 S.S. | S41000 |
| 141 | 304 S.S. | S30400 |
| 159 | 316L S.S. | S31603 |
| A12 | C276 | N10276 |
| 602 | Alloy 625 | N06625 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
Not all alloys are available with all element types and seals.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
