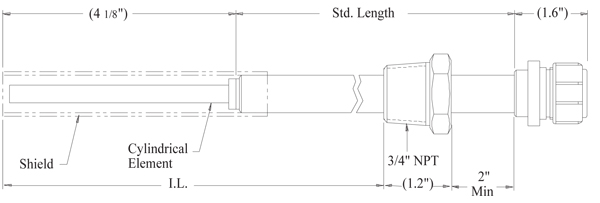

Model ER2100 is a fixed-length, electrical resistance probe with a 3/4" NPT pipe
plug. The probe requires process isolation or process shutdown to install and a threaded
pipe fitting to mount. The all-welded construction allows the probe to be used in harsh
environments. The probe assembly consists of an insertion rod with an element, a
hermetically sealed connector, and a 3/4" NPT pipe plug, which are all welded in
place. A velocity shield can be provided if required. The insertion length (I.L.) is
calculated to the end of the shield or to the end of the element if a shield is not
present. Probe length can be specified by the customer. For standard probes, the maximum
insertion length is given in the chart below. Several standard elements are available to
meet your specific needs.
| Specifications:
Probe Body - 316 Stainless Steel Element Seal - Welded Fill Material - Ceramic Temperature Rating - 500° F / 260° C Pressure Rating - 3000 PSI / 204 Bar Mounting - 3/4" NPT Pipe Plug |
STD. LENGTH | I.L. (max) |
| 6" | 8.38" | |
| 8" | 10.38" | |
| 12" | 14.38" | |
| 18" | 20.38" |
| Model | |||||||
| ER2 | - Electrical Resistance Fixed Length Pipe Plug Probe | ||||||
| ¦ | Pipe Plug Size | ||||||
| ¦ | 2 | - 3/4" NPT Pipe Plug | |||||
| ¦ | 3 | - 1" NPT Pipe Plug | |||||
| ¦ | ¦ | Probe Body Material | |||||
| ¦ | ¦ | 22 | - 316 | ||||
| ¦ | ¦ | 44 | - C276 | ||||
| ¦ | ¦ | ¦ | ER Element Options | ||||
| ¦ | ¦ | ¦ | 500 | - CT10 Cylindrical - 10 mil thickness (5 mil useful probe life) | |||
| ¦ | ¦ | ¦ | 600 | - CT20 Cylindrical - 20 mil thickness (10 mil useful probe life) | |||
| ¦ | ¦ | ¦ | 700 | - CT50 Cylindrical - 50 mil thickness (25 mil useful probe life) | |||
| ¦ | ¦ | ¦ | ¦ | Insertion Length | |||
| ¦ | ¦ | ¦ | ¦ | 06 | - 8.38 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 08 | - 10.38 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 12 | - 14.38 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 18 | - 20.38 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | Element Alloy | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | XXX | - Use Code in Alloy Chart | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ER Probe Options | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 00 | - No shield |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 03 | - Shield |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | |
| ER2 | 2 | 22 | 500 | 08 | 375 | 03 | Example of Probe Ordering # |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
| Alloy Chart | ||
| Code | Description | UNS # |
| 375 | C1010 | G10100 |
| 538 | 5Cr 1/2mo | K42544 |
| 541 | 9Cr 1mo | K90941 |
| 186 | 410 S.S. | S41000 |
| 141 | 304 S.S. | S30400 |
| 159 | 316L S.S. | S31603 |
| A12 | C276 | N10276 |
| 602 | Alloy 625 | N06625 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
Not all alloys are available with all element types and seals.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
