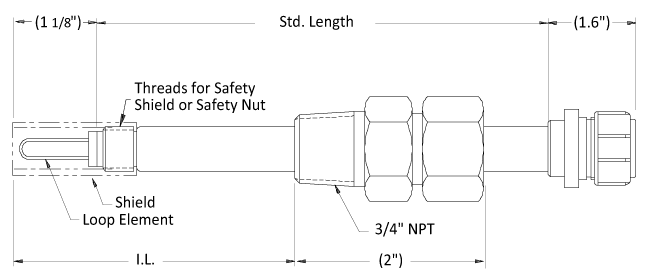

Model ER3000 is an adjustable-length, electrical resistance probe with a 3/4" NPT
compression fitting. The compression fitting allows the probe to be inserted into the
process to the required length. The probe requires process isolation or process shutdown
to install and a threaded pipe fitting to mount. The probe consists of an insertion rod
with an element, a hermetically sealed connector, a 3/4" compression fitting, and a
safety nut to prevent blow out. A velocity shield can be added to the assembly if
required. The insertion length (I.L.) is calculated to the end of the shield or to the end
of the element if a shield is not present. Probe length can be specified by the customer.
For standard probes, the maximum insertion length is given in the chart below. Several
standard elements are available to meet your specific needs.
| Specifications:
Probe Body - 316 Stainless Steel Element Seal - Glass or Teflon® Fill Material - Ceramic Temperature Rating - 500° F / 260° C Pressure Rating - 1500 PSI / 102 Bar Mounting - 3/4" NPT Fitting |
STD. LENGTH | I.L. (max) |
| 6" | 5.33" | |
| 8" | 7.33" | |
| 12" | 11.33" | |
| 18" | 17.33" |
| Model | ||||||||
| ER3 | - Electrical Resistance Adjustable Pipe Plug Probe | |||||||
| ¦ | Pipe Plug Size | |||||||
| ¦ | 2 | - 3/4" NPT Pipe Plug | ||||||
| ¦ | 3 | - 1" NPT Pipe Plug | ||||||
| ¦ | ¦ | Probe Body Material | ||||||
| ¦ | ¦ | 22 | - 316 | |||||
| ¦ | ¦ | 44 | - C276 | |||||
| ¦ | ¦ | ¦ | ER Element Options | |||||
| ¦ | ¦ | ¦ | 00 | - WR40 Wire Loop - 40 mil thickness (10 mil useful probe life) | ||||
| ¦ | ¦ | ¦ | 10 | - WR80 Wire Loop - 80 mil thickness (20 mil useful probe life) | ||||
| ¦ | ¦ | ¦ | 20 | - TU04 Tube Loop - 4 mil thickness (2 mil useful probe life) | ||||
| ¦ | ¦ | ¦ | 30 | - TU08 Tube Loop - 8 mil thickness (4 mil useful probe life) | ||||
| ¦ | ¦ | ¦ | 80 | - SL05 Strip Loop - 5 mil thickness (1.25 mil useful probe life) | ||||
| ¦ | ¦ | ¦ | 90 | - SL10 Strip Loop - 10 mil thickness (2.5 mil useful probe life) | ||||
| ¦ | ¦ | ¦ | A0 | - FS04 Flush Mount Small - 4 mil thickness (2 mil useful probe life) | ||||
| ¦ | ¦ | ¦ | ¦ | Seal Type | ||||
| ¦ | ¦ | ¦ | ¦ | 1 | - Glass | |||
| ¦ | ¦ | ¦ | ¦ | 2 | - Teflon® | |||
| ¦ | ¦ | ¦ | ¦ | 3 | - Epoxy | |||
| ¦ | ¦ | ¦ | ¦ | ¦ | Insertion Length | |||
| ¦ | ¦ | ¦ | ¦ | ¦ | 06 | - 5.33 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | 08 | - 7.33 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | 12 | - 11.33 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | 18 | - 17.33 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | Element Alloy | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | XXX | - Use Code in Alloy Chart | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ER Probe Options | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 00 | - No shield |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 03 | - Shield |
| ER3 | 2 | 22 | 10 | 1 | 08 | 375 | 03 | Example of Probe Ordering # |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
| Alloy Chart | ||
| Code | Description | UNS # |
| 375 | C1010 | G10100 |
| 538 | 5Cr 1/2mo | K42544 |
| 541 | 9Cr 1mo | K90941 |
| 186 | 410 S.S. | S41000 |
| 141 | 304 S.S. | S30400 |
| 159 | 316L S.S. | S31603 |
| A12 | C276 | N10276 |
| 602 | Alloy 625 | N06625 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
Not all alloys are available with all element types and seals.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
