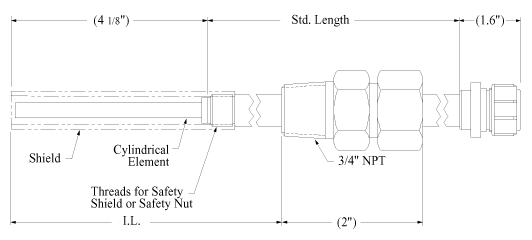

Model ER3100 is an adjustable-length, electrical resistance probe with a 3/4" NPT
compression fitting. The compression fitting allows the probe to be inserted into the
process to the required length. The probe requires process isolation or process shutdown
to install and a threaded pipe fitting to mount. The all-welded construction allows the
probe to be used in harsh environments. The probe assembly consists of an insertion rod
with an element, a hermetically sealed connector welded in place, a 3/4" compression
fitting, and a safety nut to prevent blow out. A velocity shield can be added to the
assembly if required. The insertion length (I.L.) is calculated to the end of the shield
or to the end of the element if a shield is not present. Probe length can be specified by
the customer. For standard probes, the maximum insertion length is given in the chart
below. Several standard elements are available to meet your specific needs.
| Specifications: Probe Body - 316 Stainless Steel Element Seal - Welded Fill Material - Ceramic Temperature Rating - 500° F / 260° C Pressure Rating - 1500 PSI / 102 Bar Mounting - 3/4" NPT Fitting |
STD. LENGTH | I.L. (max) |
| 6" | 8.58" | |
| 8" | 10.58" | |
| 12" | 14.58" | |
| 18" | 20.58" |
| Model | |||||||
| ER3 | - Electrical Resistance Adjustable Length Pipe Plug Probe | ||||||
| ¦ | Pipe Plug Size | ||||||
| ¦ | 2 | - 3/4" NPT Pipe Plug | |||||
| ¦ | 3 | - 1" NPT Pipe Plug | |||||
| ¦ | ¦ | Probe Body Material | |||||
| ¦ | ¦ | 22 | - 316 | ||||
| ¦ | ¦ | 44 | - C276 | ||||
| ¦ | ¦ | ¦ | ER Element Options | ||||
| ¦ | ¦ | ¦ | 500 | - CT10 Cylindrical - 10 mil thickness (5 mil useful probe life) | |||
| ¦ | ¦ | ¦ | 600 | - CT20 Cylindrical - 20 mil thickness (10 mil useful probe life) | |||
| ¦ | ¦ | ¦ | 700 | - CT50 Cylindrical - 50 mil thickness (25 mil useful probe life) | |||
| ¦ | ¦ | ¦ | ¦ | Insertion Length | |||
| ¦ | ¦ | ¦ | ¦ | 06 | - 8.58 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 08 | - 10.58 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 12 | - 14.58 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 18 | - 20.58 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | Element Alloy | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | XXX | - Use Code in Alloy Chart | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ER Probe Options | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 00 | - No shield |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 03 | - Shield |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | |
| ER3 | 2 | 22 | 500 | 08 | 375 | 03 | Example of Probe Ordering # |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
| Alloy Chart | ||
| Code | Description | UNS # |
| 375 | C1010 | G10100 |
| 538 | 5Cr 1/2mo | K42544 |
| 541 | 9Cr 1mo | K90941 |
| 186 | 410 S.S. | S41000 |
| 141 | 304 S.S. | S30400 |
| 159 | 316L S.S. | S31603 |
| A12 | C276 | N10276 |
| 602 | Alloy 625 | N06625 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
Not all alloys are available with all element types and seals.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
