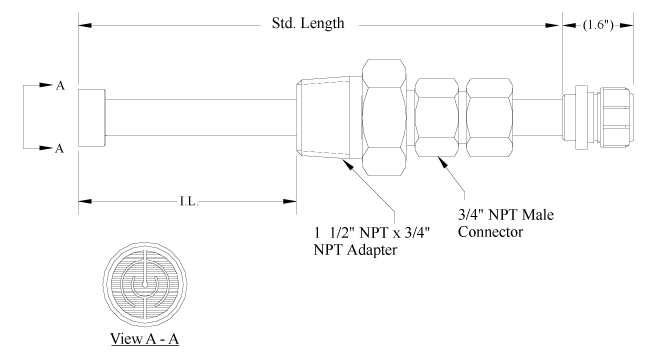

Model ER3200 is an adjustable-length, electrical resistance probe with a 3/4" NPT
compression fitting combined with a 3/4" to 1 1/2" adapter. The compression
fitting allows the probe to be inserted into the process to the required length. The probe
requires process isolation or process shutdown to install and a threaded pipe fitting to
mount. The probe assembly consists of an insertion rod with an element, a hermetically
sealed connector welded in place, a 3/4" compression fitting, and a 3/4" to 1
1/2" adapter. The adapter can not be removed from the compression fitting. The
insertion length (I.L.) is calculated to the end of the element. Probe length can be
specified by the customer. For standard probes, the maximum insertion length is given in
the chart below. Several standard elements are available to meet your specific needs.
| Specifications: Probe Body - 316 Stainless Steel Element Seal - Epoxy Fill Material - Ceramic Temperature Rating - 500° F / 260° C Pressure Rating - 1500 PSI / 102 Bar Mounting - 1 1/2" NPT Fitting |
STD. LENGTH | I.L. (max) |
| 6" | 3" | |
| 8" | 5" | |
| 12" | 9" | |
| 18" | 15" |
| Model | |||||||
| ER3 | - Electrical Resistance Adjustable Length Pipe Plug Probe | ||||||
| ¦ | Pipe Plug Size | ||||||
| ¦ | 7 | - 1 1/2" NPT Pipe Plug | |||||
| ¦ | ¦ | Probe Body Material | |||||
| ¦ | ¦ | 22 | - 316 | ||||
| ¦ | ¦ | 44 | - C276 | ||||
| ¦ | ¦ | ¦ | ER Element Options | ||||
| ¦ | ¦ | ¦ | C03 | - S05 Flush Mount - 5 mil thickness (2.5 mil useful probe life) | |||
| ¦ | ¦ | ¦ | D03 | - S10 Flush Mount - 10 mil thickness (5 mil useful probe life) | |||
| ¦ | ¦ | ¦ | E03 | - S20 Flush Mount - 20 mil thickness (10 mil useful probe life) | |||
| ¦ | ¦ | ¦ | F03 | - S40 Flush Mount - 40 mil thickness (20 mil useful probe life) | |||
| ¦ | ¦ | ¦ | ¦ | Insertion Length | |||
| ¦ | ¦ | ¦ | ¦ | 06 | - 3 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 08 | - 5 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 12 | - 9 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 18 | - 15 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | Element Alloy | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | XXX | - Use Code in Alloy Chart | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ER Probe Options | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 00 | - No shield |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | |
| ER3 | 7 | 22 | C03 | 08 | 375 | 00 | Example of Probe Ordering # |
For alloys, sizes, or other special requirements not listed, please contact our sales
department.
| Alloy Chart | ||
| Code | Description | UNS # |
| 375 | C1010 | G10100 |
| 538 | 5Cr 1/2mo | K42544 |
| 541 | 9Cr 1mo | K90941 |
| 186 | 410 S.S. | S41000 |
| 141 | 304 S.S. | S30400 |
| 159 | 316L S.S. | S31603 |
| A12 | C276 | N10276 |
| 602 | Alloy 625 | N06625 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
Not all alloys are available with all element types and seals.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
