Model ER7000

Electrical Resistance Probe, Retrievable with Loop Element
for High Pressure (HPTM and MHTM) Access Systems

View PDF version

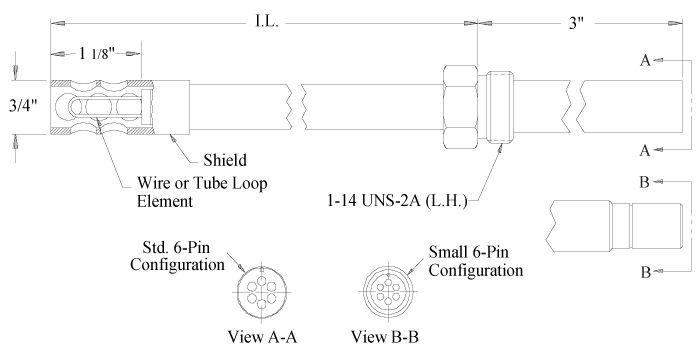

Model ER7000 is a fixed-length, retrievable, electrical resistance probe for use with the HPTM and MHTM high pressure access systems. The probe assembly consists of an insertion rod with an element, a hermetically sealed connector, and a hollow plug nut, which are all welded in place. A velocity shield can be added to the assembly if required. The hollow plug nut on the probe screws into the hollow plug of the access system. This allows the probe to be installed in the process, using a retriever tool and service valve, without process shutdown. The insertion length (I.L.) can range from 2.875" up to any length specified by the customer in 1/8" increments. Insertion length is calculated by the formula:

I.L. = PD + WT + 1.75"
(where PD = penetration depth, WT = wall thickness)

Note: Formula valid for access fitting heights of 5.25" (HP) and 5.5" (MH).

Several standard elements are available to meet your specific needs. Probe adaptors are available and must be ordered separately.



Specifications:

Probe Body - 316 Stainless Steel
Element Seal - Glass
Fill Material - Ceramic
Temperature Rating - 500° F / 260° C
Pressure Rating - 3600 PSI / 245 Bar
Mounting - High Pressure (HPTM or MHTM) Access System with Hollow Plug




ER7000 Ordering Information

Model
HR - Electrical Resistance Probe for High Pressure (HP and MH) Access Systems
  Probe Body Material
2 - 316 SS
3 - C276
  Connector Type
1 - Small Connector
2 - Standard Connector
  ER Element Options
0 - WR40 Wire Loop - 40 mil thickness (10 mil useful probe life)
1 - WR80 Wire Loop - 80 mil thickness (20 mil useful probe life
2 - TU04 Tube Loop - 4 mil thickness (2 mil useful probe life)
3 - TU08 Tube Loop - 8 mil thickness (4 mil useful probe life)
  Seal Type
1 - Glass
2 - Teflon®
3 - Epoxy
  Length (Round calculated length down to the nearest 1/8")
Enter length in inches, stated in 2 decimal place format (Example: 6 1/8" = 0612) Click here to open Length Calculator
  Element Alloy
  ER Probe Options
00 - No shield
01 - Standard Shield
02 - High-Velocity Shield
03 - Coupon Holding Shield
Your Part Number


Description:

Quantity:


This list represents our most common options.  Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.
(Note: Not all alloys are available with all element types and seals.)
* Chemically equivalent to standard pipe-grade carbon steels.

Teflon® is a registered trademark of DuPont.
