Model LP7210

Linear Polarization Resistance Probe
Retrievable with Flush-Mount 3-Electrode Endcap
for High Pressure (HPTM and MHTM) Access Systems

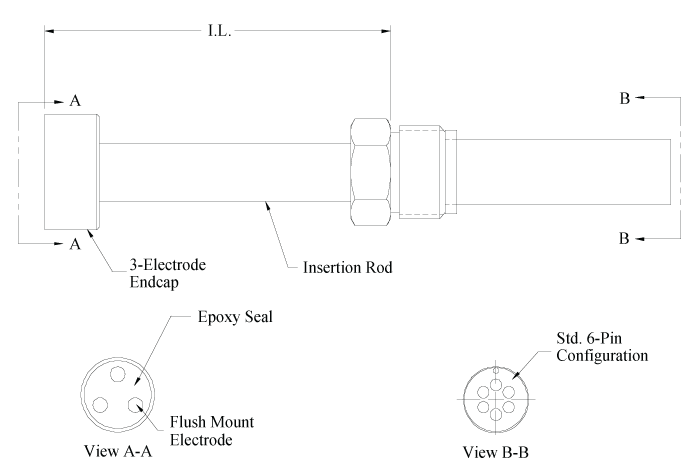

Model LP7210 is a fixed-length, flush-mount, three-electrode, retrievable, linear polarization resistance probe for use with HPTM and MHTM high pressure access systems. These probes are ideally suited for applications where the probe electrodes need to be flush with the wall of the pipe. The probe assembly consists of an insertion rod, a flush-mount three-electrode endcap, and a six-pin military connector. The hollow plug nut on the probe screws into the hollow plug of the access system. This allows the probe to be installed in the process, using a retriever tool and service valve, without process shutdown. The probe's three-electrode endcap is filled with an epoxy seal. Electrodes are not replaceable. The insertion length (I.L.) can range from a minimum of 1.75" up to any length specified by the customer in 1/8" increments, using the formula:

I.L. = PD + WT + 1.75"
(where PD = penetration depth, WT = wall thickness)
For top-of-the-line, flush-mount monitoring, PD = 0.

Note: Formula valid for access fitting heights of 5.25" (HP) and 5.5" (MH).





Specifications:

Probe Body - 316 Stainless Steel

Endcap Seal - Epoxy

Fill Material - Epoxy

Temperature Rating - 500° F / 260° C

Pressure Rating - 3600 PSI / 245 Bar

Mounting - High Pressure (HP or MH) Access System with Hollow Plug



LP7210 Ordering Information



Model
HL - Linear Polarization Three-Electrode Probe for High Pressure Access Systems
¦ Mounting Material
¦ 2 - 316
¦ 3 - C276
¦ ¦ Connector Type
¦ ¦ 2 - Standard connector
¦ ¦ ¦ LP Electrode Options
¦ ¦ ¦ 4 - Three-electrode integral flush type
¦ ¦ ¦ 6 - Three-electrode integral flush adjustable type
¦ ¦ ¦ ¦ Seal Type
¦ ¦ ¦ ¦ 1 - Epoxy
¦ ¦ ¦ ¦ ¦ Length (round calculated length down to the nearest 1/8")
¦ ¦ ¦ ¦ ¦ XXXX - Length in inches, stated in 2 decimal place format (Ex: 6 1/8" = 0612)
¦ ¦ ¦ ¦ ¦ ¦ Electrode Alloy
¦ ¦ ¦ ¦ ¦ ¦ XXX - Use Code in Alloy Chart
¦ ¦ ¦ ¦ ¦ ¦ ¦
HL 2 2 4 1 0612 XXX Example of Probe Ordering #



Alloy Chart
Code Description UNS #
377 C1018 G10180
159 316L S.S. S31603
419 CDA110 C11000
434 CDA443 C44300


For alloys, sizes, or other special requirements not listed, please contact our sales department.
Not all alloys are available with all electrode types and seals.

Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.

Main Office:
Phone: (256) 358-4202
Fax: (256) 358-4515
E-mail: msc@alspi.com

Houston Office:
Phone: (281) 471-2777
Fax: (281) 471-3405



LP7100 Return to LPR Probe Menu TF0222/TF0220
