MS2600E High Resolution ER Transmitter

4-20 mA Analog Output

View PDF version
User's Manual in PDF
Instrinsic Safety Certifications

Metal Samples’ new compact MS2600E ER Transmitter (ERT) measures all types of electrical resistance (ER) corrosion probes. The new high-resolution, 16-bit measurement provides faster response, obtaining corrosion rates in hours instead of days. The transmitter can be remote or direct-mounted (shown).

The transmitter is available in a weather-proof (IP66) stainless steel enclosure designed for applications which do not permit aluminum enclosures (such as offshore environments or Zone 0 hazardous areas). Alternatively, a weather-proof (IP66) and explosion proof cast aluminum enclosure is also available.
MS2600E High Resolution ER Transmitter

MS2600E High Resolution ER Transmitter

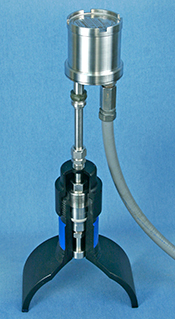

MS2600E direct mounted
to a retrievable probe

The MS2600E is completely loop-powered, so installation is simple. A two-wire connection is all that is required for both instrument power and data transmission. Setup is also simple, using a set of switches to select the probe type to be measured.




Technical Specifications

Model
MS2600E - High Resolution ER 4-20mA Transmitter

Physical Data
Instrument Weight: 3.70 lb. (1.68 Kg)
Total Weight w/ Accessories: 5.76 lb. (2.61 Kg)
Instrument Dimensions: 6.0" H x 4.0" Dia. (15.25 cm H x 10.16 cm Dia.)

Operating Temperature: 32° to 158°F (0° to 70°C)
Storage Temperature: -40° to 176°F (-40° to 80°C)

Enclosure Material: 316 Stainless Steel
Enclosure Rating: IP66
Mounting Specifications:

Direct probe mount (standard)
May be pole mounted using optional hardware
(Up to a 2.5" (6.35 cm) Dia. pole)


Performance Data
Measurement Type: ER measurement using any standard ER probe type
(Wire Loop, Tube Loop, Cylindrical, Flush, Strip, etc.)
Range: 0-100% of probe life
Resolution: 0.0015% of Probe Life (16-bit)
Cycle Time: 1 minute

Electrical Data
Power Requirements: 10 to 28 VDC
Maximum Probe Cable Distance: 30 ft (9.1 m)
Output Specifications: 4-20 mA Current Loop Output

Hazardous Location Certifications - Intrinsic Safety
USA / Canada Conforms to ANSI/UL Std. 60079-0, 60079-11, 61010-1
CAN/CSA Std. E66079-0, E60079-11 & CAN/CSA C22.2 No. 61010-1
Class I, Zone0, AEx ia IIC T4 Ga
Zone 20, AEx ia IIIC T130° C Da
-20° C ≤ Ta ≤ +70° C

Europe and Worldwide
(ATEX and IECEx)
II 1 G Ex ia IIC T4 Ga
II 1 D Ex ia III T130°C Da
- 20°C ≤ Ta ≤ + 70°C
ATEX Certificate No: ITS14ATEX27981X
IECEx Certificate No: IECEx ITS 14.0010X

X. Probe dielectric rating < 500V r.m.s. Do not exceed.

Included Accessories
33’ (10 meters) Current Loop Wiring Harness, Meter Prover, Operations Manual

Optional Accessories
Probe Extension Cable, Remote Mounting Hardware



MS2600E Ordering Information

Model
MS2600E - High Resolution ER 4-20mA Transmitter

Your Part Number


Description:

Quantity:
