Model ER4200 is a retractable, flush-mount, electrical resistance probe ideally suited
for applications where the probe element needs to be flush with the wall of the pipe. A
specially designed packing gland is used with the probe for insertion to or retraction
from a pressurized system without a process shutdown. Standard packing material in the
packing gland is Teflon®. Grafoil packing can be provided if requested. The
probe is designed to mount into a 1" piping system, but can easily be adapted to fit
your specific requirements. The probe consist of an insertion rod with an element, a
hermetically sealed connector welded in place, and a packing gland. The insertion length

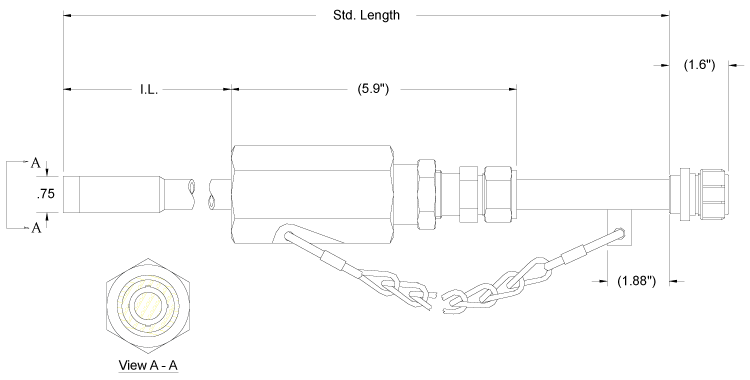

(I.L.) is calculated to the end of the element. Probe length can be specified by the
customer. For standard probes, the maximum length is given in the chart below. Several
standard elements are available to meet your specific needs.
| Specifications:
Probe Body - 316 Stainless Steel Element Seal - Epoxy Fill Material - Epoxy Temperature Rating - 500° F / 260° C Pressure Rating - 1500 PSI / 102 Bar Mounting - 1" Full Port Valve (Min.) |
STD. LENGTH | I.L. (max) |
| 24" | 16.22" | |
| 30" | 22.22" | |
| 36" | 28.22" | |
| 42" | 34.22" |
The Easy Tool is required for probe
insertion or retraction in systems with pressure over 150 pounds.
See
Retractable Systems video.
See Packing Gland Instructions and Safety Chain Instructions.
See Length Calculation and Accessories for Retractable Probes.
| Model | |||||||
| ER45 | - Electrical Resistance 1" Female NPT Probe, Packing Gland with Teflon® | ||||||
| ER75 | - Electrical Resistance 1" Female NPT Probe, Packing Gland with Grafoil | ||||||
| ¦ | Probe Body Material | ||||||
| ¦ | 22 | - 316 | |||||
| ¦ | 44 | - C276 | |||||
| ¦ | ¦ | ER Element Options | |||||
| ¦ | ¦ | A0 | - FS04 Flush Mount - 4 mil thickness (2 mil useful probe life) | ||||
| ¦ | ¦ | B0 | - FS08 Flush Mount - 8 mil thickness (4 mil useful probe life) | ||||
| ¦ | ¦ | H0 | - FS20 Flush Mount - 20 mil thickness (10 mil useful probe life) | ||||
| ¦ | ¦ | ¦ | Seal Type | ||||
| ¦ | ¦ | ¦ | 3 | - Epoxy | |||
| ¦ | ¦ | ¦ | ¦ | Length | |||
| ¦ | ¦ | ¦ | ¦ | 24 | - 16.22 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 30 | - 22.22 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 36 | - 28.22 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | 42 | - 34.22 inches max. insertion length | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | Element Alloy | ||
| ¦ | ¦ | ¦ | ¦ | ¦ | XXX | - Use Code in Alloy Chart | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ER Probe Options | |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | 00 | - N/A |
| ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | ¦ | |
| ER45 | 22 | A0 | 1 | 36 | 375 | 00 | Example of Probe Ordering # |
For alloys, sizes, or other special requirements not listed, please contact our sales department.
Safety clamp must be ordered separately.
| Alloy Chart | ||
| Code | Description | UNS # |
| 375 | C1010 | G10100 |
| 538 | 5Cr 1/2mo | K42544 |
| 541 | 9Cr 1mo | K90941 |
| 186 | 410 S.S. | S41000 |
| 141 | 304 S.S. | S30400 |
| 159 | 316L S.S. | S31603 |
| A12 | C276 | N10276 |
| 602 | Alloy 625 | N06625 |
| 419 | CDA110 | C11000 |
| 434 | CDA443 | C44300 |
Not all alloys are available with all element types and seals.
Contact Metal Samples Corrosion Monitoring Systems sales department for pricing and availability.
