LPR Instrumentation / Meters

Corrosion Data Management Software

Metal Samples offers a complete line of corrosion monitoring instruments / meters for linear polarization resistance (LPR) probes.


MS1000 - is a 2-electrode, hand-held corrosion meter with a zero resistance ammeter.

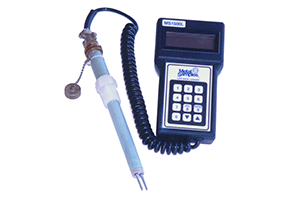

MS1500L - is a digital, hand-held, menu-driven corrosion meter that takes LPR probe measurements and stores the data to be downloaded to your computer for analysis.
ETL certified for intrinsic safety in hazardous areas.
Free Corrosion Data Management Software with purchase of MS1500L corrosion meter.

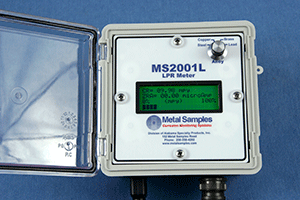

MS2001L - is a microprocessor-based, field-mountable corrosion rate meter.

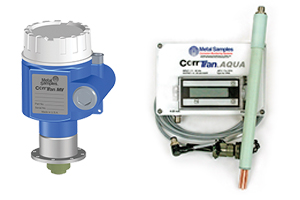

MS2100L - CorrTran AQUA - is a field transmitter used in the water treatment industry that measures general corrosion, localized corrosion (pitting), and conductance, and transmits that information to operators via 4 to 20mA / HART® protocol in real time. The transmitter has a NEMA 4X, IP66 weatherproof enclosure.

MS2500L - is a field transmitter which transmits measurements to a Metal Samples' or customer-supplied receiver.

MS2900L - CorrTran MV - is a field transmitter that measures general corrosion, localized corrosion (pitting), and conductance, and transmits that information to operators via 4 to 20mA / HART® protocol in real time. The transmitter is weatherproof and certified for use in hazardous locations.

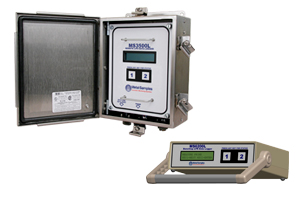

MS3500L / MS3510L - is a data logger used to continuously monitor LPR probes in remote locations, automatically read the probes at selected intervals, and store the readings in its memory. The MS3510E has a 4-20mA Current Loop output.
ETL certified for intrinsic safety in hazardous areas.
Free Corrosion Data Management Software with purchase of MS3500L.

MS6200L - is a bench-top data logger ideally suited for use in laboratory environments.

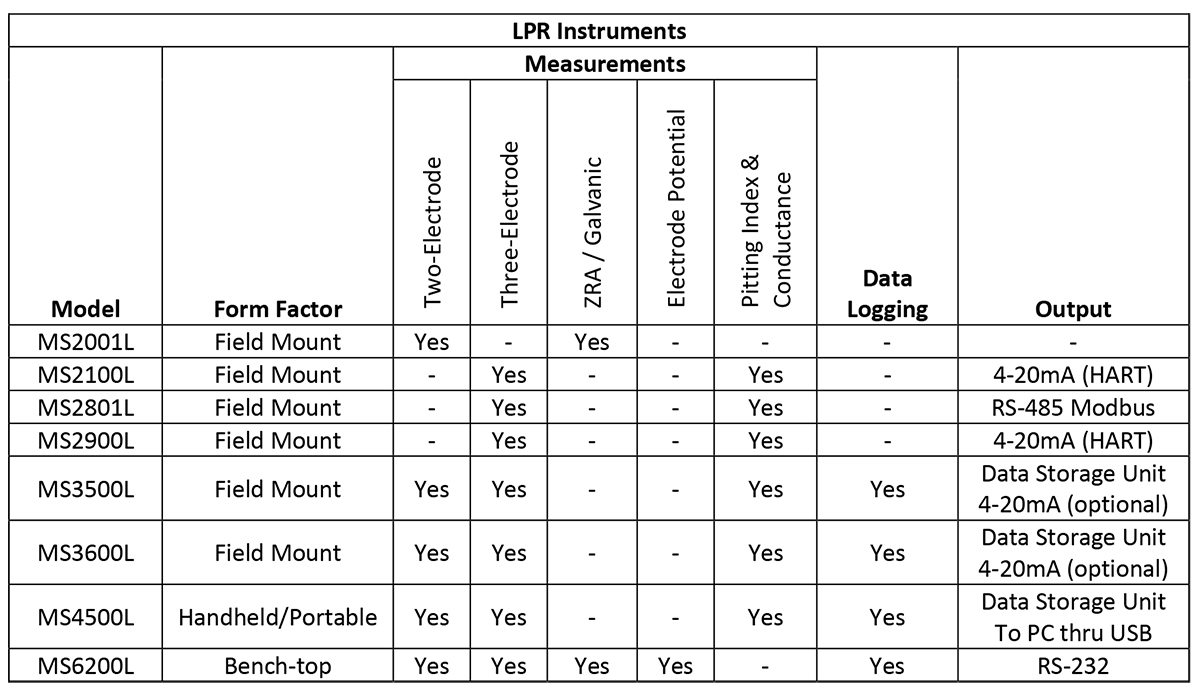

LPR Instruments
Form Factor Measurements Data
Logging

Output
Two
Electrode
Three
Electrode
ZRA/
Galvanic
Electrode
Potential
Pitting Index & Conductance
MS1000 Handheld/Portable yes - yes - - - -
MS1500L Handheld/Portable yes yes yes yes - yes RS-232
MS2001L Field Mount yes - yes - - - -
MS2100L Field Mount - yes - - yes - 4-20mA (HART)
MS2500L Field Mount - yes - yes - - 4-20mA
MS2900L Field Mount - yes - - yes - 4-20mA (HART)
MS3500L Field Mount yes yes yes yes - yes RS-232
4-20mA (optional)
MS6200L Bench-top yes yes yes yes - yes RS-232


Accessories

MS2510 Receiver - provides local display for one MS2500L transmitter.

MS2540 Receiver / Repeater - provides local display for one MS2500L transmitter, and offers RS-485 Modbus output to the plant SCADA/DCS/PLC system.

Wireless Radio Option for the MS2500L.
