Quick-Connect Bypass System

View PDF version
Metal Samples' quick-connect bypass system utilizes cam-lock fittings which eliminate the need for tools, and allow devices such as coupon holders and corrosion probes to be installed or swapped by hand in just minutes*. Devices can be hand-inserted into the quick-connect sockets, and are secured in place by engaging the two metal levers. This locks and seals the device with just a few easy steps.

Bypass systems are easily connected to your existing piping using standard pipe fittings. Systems are available with 2, 3, and 4 stations. Standard systems come equipped with one pre-weighed mild steel coupon per station and one coupon holder per station, and also include a 5-gpm flow control (for 3/4" systems) or an 8-gpm flow control (for 1” systems).

Requires the use of Metal Samples’ cam-lock devices.



Specifications

Pipe Schedule – Sch 80
Maximum Temperature Rating – 110°F / 43°C
Maximum Pressure Rating – 125 psi / 8.6 Bar
Maximum Combined Rating
125 psi @ 72°F (8.6 Bar @ 22.2°C)
Materials of Construction**:
    Bypass Piping: PVC
    Flow Control Body: 300-series S.S.
    Flow Control Gasket: Buna-N
    Cam-Lock Receptacle Body: Nylon
    Cam-Lock Levers: 300-series S.S.
    Cam-Lock Gasket: EPDM

** Standard materials listed. Other materials available.

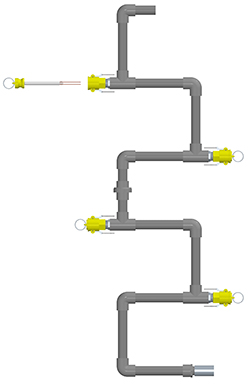

Cam-lock fittings allow quick insertion of
coupon holders without the need for tools.



Ordering Information

Part #

Stations

Pipe Size
TF2534727  2 3/4"
Quantity:
TF2535727 3
Quantity:
TF2536727 4
Quantity:
TF2537727 2 1"
Quantity:
TF2538727 3
Quantity:
TF2539727 4
Quantity:



Replacement Parts & Accessories

Part # Description Material
BA5311139 3/4" NPT Flow Control Body 303 S.S.
Quantity:
BA5310139 1" NPT Flow Control Body
Quantity:
BA5346370 Flow Control Gasket - 5 GPM Buna-N
Quantity:
BA5312370 Flow Control Gasket - 8 GPM
Quantity:
BA5313370 Flow Control Gasket - 10 GPM
Quantity:
BA5347370 Flow Control Gasket - 12 GPM
Quantity:
BA5479 Cam-Lock Gasket for 3/4" Systems EPDM Rubber
Quantity:
BA5480 Cam-Lock Gasket for 1" Systems
Quantity:
RC1BEC010066 Coupon Holder for 3/4" Systems1 PVC/Nylon
Quantity:
RC1CEC010066 Coupon Holder for 1" Systems1
Quantity:
LP2CCC20306000 2-Electrode LPR Probe for 3/4" Systems2 PVC
Quantity:
LP2DCC20306000 2-Electrode LPR Probe for 1" Systems2
Quantity:
LP2CCC30306000 3-Electrode LPR Probe for 3/4" Systems2
Quantity:
LP2DCC30306000 3-Electrode LPR Probe for 1" Systems2
Quantity:
CO1003750104100 Carbon Steel Coupon, Weighed3, 5 C1010 / G10100
Quantity:
CO1004190104100 Copper Coupon, Weighed3, 5 CDA110 / C11000
Quantity:
CO1004340104100 Brass Coupon, Weighed3, 5 CDA443 / C44300
Quantity:
CO1001450104100 Stainless Steel Coupon, Weighed3, 5 304L / S30403
Quantity:
CO1001590104100 Stainless Steel Coupon, Weighed3, 5 316L / S31603
Quantity:
CO1002900104100 Aluminum Coupon, Weighed3, 5 AL1100 / A91100
Quantity:
CO1003380104100 Aluminum Coupon, Weighed3, 5 AL6061 / A96061
Quantity:
EL4003752800000 Carbon Steel Electrode, Weighed4, 5 C1010 / G10100
Quantity:
EL4004192800000 Copper Electrode, Weighed4, 5 CDA110 / C11000
Quantity:
EL4004342800000 Brass Electrode, Weighed4, 5 CDA443 / C44300
Quantity:
EL4001452800000 Stainless Steel Electrode, Weighed4, 5 304L / S30403
Quantity:
EL4001592800000 Stainless Steel Electrode, Weighed4, 5 316L / S31603
Quantity:
EL4002902800000 Aluminum Electrode, Weighed4, 5 AL1100 / A91100
Quantity:
EL4003382800000 Aluminum Electrode, Weighed4, 5 AL6061 / A96061
Quantity:



1 Coupon holders have a 6” (15.24 cm) nylon stem with fasteners, and are designed for mounting Metal Samples model CO100 coupons.

2 LPR probes have a PVC body. Electrodes are sold separately.

3
Coupons are Metal Samples model CO100. They are pre-weighed, stenciled with sequence and alloy, and have a glass-beaded finish.

4
Electrodes are Metal Samples model EL400. They are sold individually, include a Viton insulator, and have a centerless-ground finish.

5
Common coupon and electrode alloys are listed here. Other alloys available upon request. Please contact Metal Samples for additional options.
