HP Solid Plug

HP Hollow Plug

An HP Plug serves as a "carrier" in a high pressure access system, and is used to install and hold a device in an HP Access Fitting. The device is mounted on the plug, and is then inserted into the Access Fitting using the Retrieval Tool. The plug holds the device in place during service, and serves as the primary pressure boundary.

Hollow plugs are used with probes, which require a through hole to allow clearance for the electrical connector.
Solid plugs are used with most other devices such as coupon holders and injection nozzles.

All hollow plugs regardless of the plug alloy ordered will come standard with a 316 SS bore seal nut.
All solid plugs regardless of the plug alloy ordered will come standard with a 316 SS pipe plug and solid plug nut.

Odering Information

Plug Type
HA700952 - HP Hollow Plug Assembly*
HA700644 - HP Solid Plug Assembly**
  Plug Material
Your Part Number


Description:

Quantity:

* Hollow Plug includes 25% glass-filled PTFE primary packing. Comes standard with a 316 SS bore seal nut regardless of the plug alloy ordered.
** Solid Plug includes 25% glass-filled PTFE primary packing and Viton® o-ring. Comes standard with a 316 SS pipe plug and solid plug nut regardless of the plug alloy ordered.



This list represents our most common options.  Many other alloys and seal materials are available.
Please contact your Metal Samples sales representative if you do not see what you are looking for.

Spare / Repair Parts

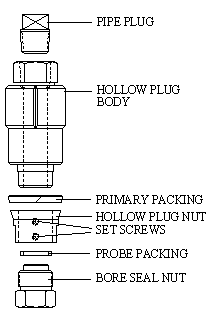

HP Hollow Plug Assembly
Description Part # Material
Pipe Plug HA700167 Plastic
Quantity:
Hollow Plug Body
Anti-Gall Coating
HA700300158 316 SS
Quantity:
Primary Packing HA700266785 PTFE (25% G)
Quantity:
Hollow Plug Nut HA700302158 316 SS
Quantity:
Set Screws
2 required
09158E1032ST0187 316 SS
Quantity:
Probe Packing HA700277785 PTFE (25% G)
Quantity:
Hollow Plug Bore
Sealing Nut
HA700311158 316 SS
Quantity:


HP Solid Plug Assembly
Description Part # Material
Pipe Plug HA700697158 316 SS
Quantity:
Solid Plug Body HA700006158 316 SS
Quantity:
O-Ring HA700600834 Viton®
Quantity:
Primary Packing HA700266785 PTFE (25% G)
Quantity:
Solid Plug Nut HA700210158 316 SS
Quantity:
Set Screw 09158E1032ST0187 316 SS
Quantity:

Viton® is a registered trademark of DuPont Dow Elastomers.
