Model IP6000

Injection & Sampling System
Fixed Length with Flange



View data sheet (PDF)

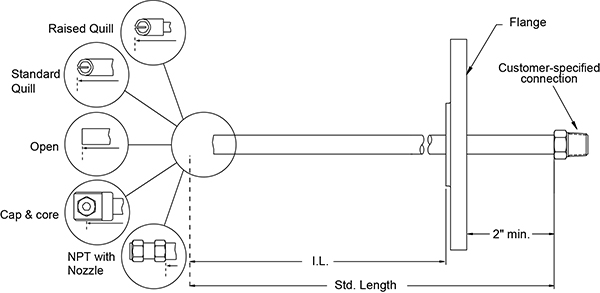

Model IP6000 Injection & Sampling System is a fixed-length, flange-mounted unit commonly used in field and plant applications. The unit is ideally suited for use in high pressure and/or hazardous applications where threaded fittings are not available or not recommended. Process shutdown or process isolation is required for installation and inspection. The unit assembly consists of a flange and an insertion rod with an injection/sampling tip. The injection tip, which is threaded, welded, or machined to the end of the rod, can be either a quill, open, cap & core, or nozzle assembly type. (Nozzles sold separately.) Insertion length (I.L.) is calculated to the end of the rod and, in this case, is based on a 1" total flange thickness. Customers can specify any length required. For standard injection systems, the maximum insertion length is given in the chart below. Several standard injection tips and flanges are available to meet your specific needs. Model IP6000 units are available in different lengths and materials.

Specifications:

Probe Body - 316 Stainless Steel
Temperature Rating - 850° F / 454° C
Pressure Rating - According to Flange Rating
Mounting - Mating Flange

Std. Length I.L. (max)
12" 9"
18" 15"
24" 21"
30" 27"
36" 33"
42" 39"





IP6000 Ordering Information

Model
IP6 - Injection & Sampling System Fixed Length with Flange
  Flange Size
1 - 1" Flange
2 - 1-1/2" Flange
3 - 2" Flange
4 - 3" Flange
6 - 1/2" Flange
  Insertion Rod Material
2 - 316
4 - C276
  Mounting Material (Flange)
2 - 316
4 - C276
  Injection Tip Options
01 - Quill (Straight)
02 - Quill (Raised)
03 - Open
04 - 1/4" NPT (Female) with Nozzle *  (See Nozzle ordering options.)
05 - Head with Cap & Core (9/16")  (See Cap & Core ordering options.)
06 - 1/4" NPT (Male) with Nozzle *  (See Nozzle ordering options.)
  Flange Pressure Rating
1 - 150 #
2 - 300 #
3 - 600 #
5 - 1500 #
6 - 900 #
  Tube Size
1 - 3/8"
2 - 1/2"
3 - 5/8"
  Length
12 - 9" max. insertion length
18 - 15" max. insertion length
24 - 21" max. insertion length
30 - 27" max. insertion length
36 - 33" max. insertion length
42 - 39" max. insertion length
  Dry End Mount Options
01 - Blanked Off
02 - 1/2" NPT
03 - 3/4" NPT
09 - 1" - 150 # RF Flange
  Insertion Length (I.L.)
Enter length in inches, stated in 2 decimal place format. Round calculated length down to the nearest 1/8".
(Example: 9 1/8" = 0912)
Your Part Number


Description:

Quantity:


This list represents our most common options.  Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.

* Nozzles must be ordered separately.
