Electrodes

View PDF version

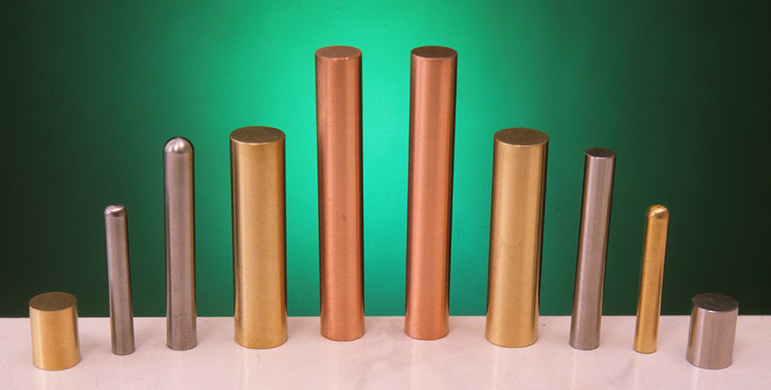

Metal Samples provides electrodes compatible with our various electrochemical probes and instruments, as well as those of most other manufacturers. We can also machine electrodes to customer specifications. We can machine electrodes from our huge inventory of metals, or from customer-supplied material. For a listing of our common alloys see Available Alloys.

In addition to our standard metal electrodes, we offer a silver/silver-chloride reference electrode for electrochemical testing. See Model TF0221 for more information.

We also offer a variety of gaskets used with common electrochemical testing apparatus.

Electrode Ordering Information

P/N (Style)	Size (Length x Diameter)	Comments
EL400	1.25" x Ø0.188"	Typically used for 2-electrode probes.
EL405	0.0625" or 0.125" x Ø0.0.625"
EL410	0.5" x Ø0.375"
EL412	Varies by alloy (1.72" x Ø0.25" nominal for Carbon Steel)	Typically used for 3-electrode probes.
	Alloy

		Finish
		Centerless Ground (EL405 is lapped on one face only.)
			Your Part Number

Description:	Quantity:



This list represents our most common options. Please contact your Metal Samples sales representative if you do not see what you're looking for.

Gaskets Commonly Used With Electro-Chemical Apparatus

	P/N MI2616 Teflon® gasket for use with EG&G 5/8" disc holder
	Quantity:

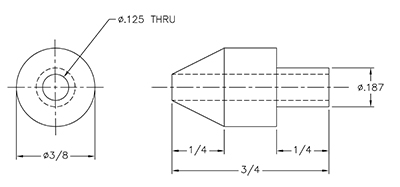

	P/N MI2604 Teflon®Compression Spacer for Electro-chemical Electrode Mounting (Per ASTM G-5)
	Quantity:

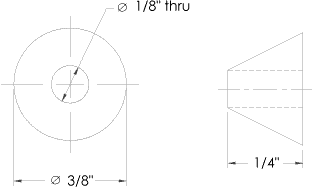

	P/N MI2605 Teflon® Compression Gasket for Electro-chemical Electrode Mounting (Per ASTM G-5)
	Quantity:

Teflon® is a registered trademark of DuPont.
