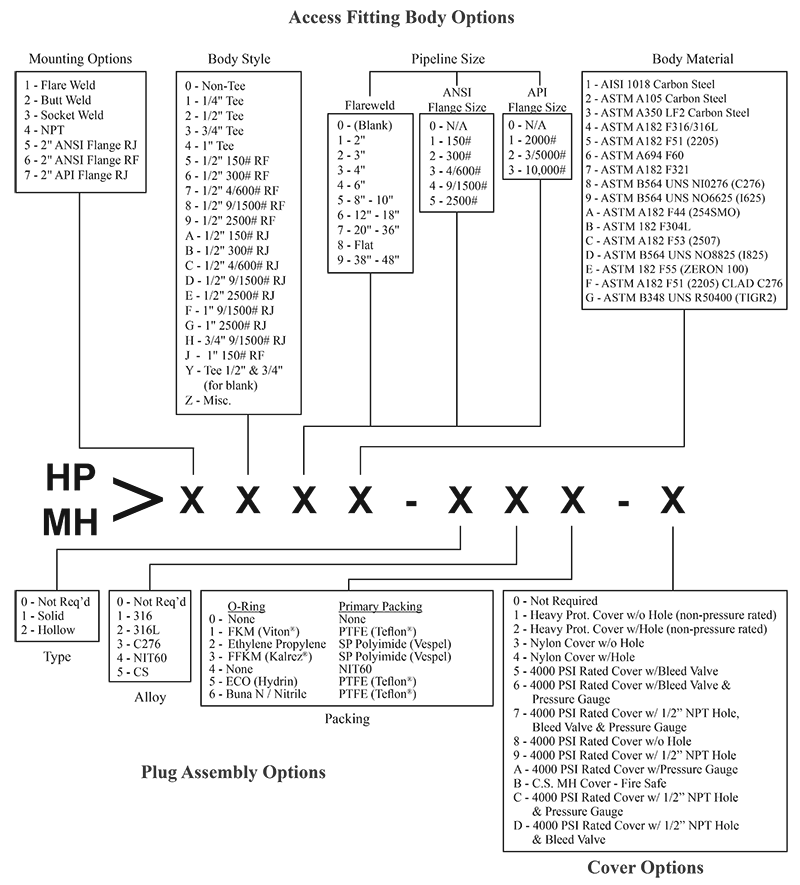

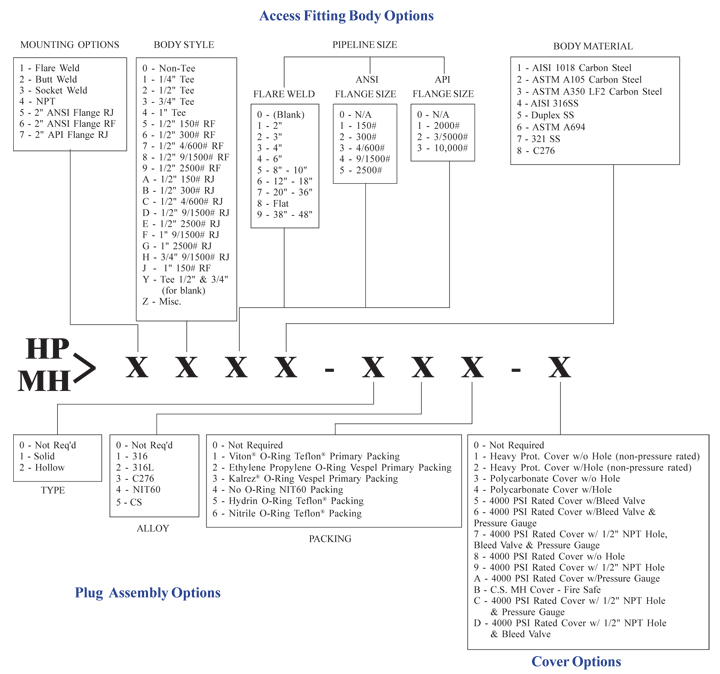

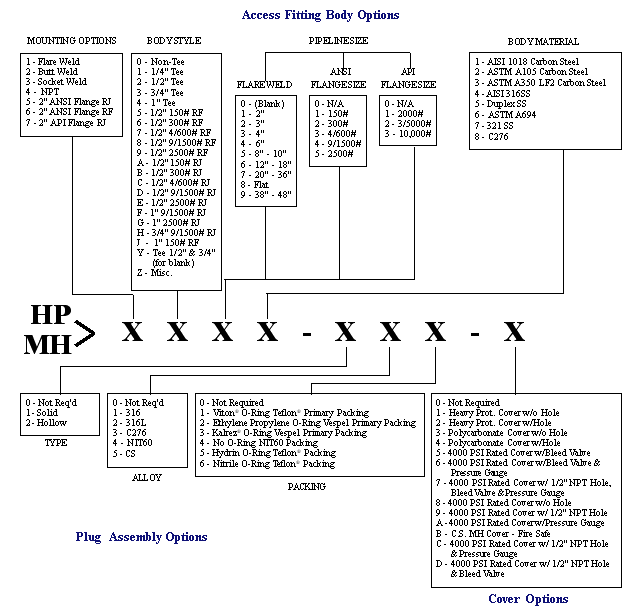

HP™ and MH™ Ordering Chart

View PDF version

Ordering Instructions

To order an access fitting body only, use the first four characters on the chart. Example: If a 1/4" Tee 4/600# ANSI Flange RJ fitting made of Duplex SS is required, order part # HP51350000.

To order an access fitting body with a solid plug assembly and no cover, use the first seven characters on the chart. Example: If a 3/4" Tee flareweld for 4" pipeline size made of ASTM A105 Carbon Steel is required with a SS solid plug, Hydrin O-ring, and TeflonĀ® primary packing, order part # HP13321550.

To order an access fitting body with a hollow plug assembly and a cover, use all eight characters on the chart. Example: If a Non-Tee 9/1500# ANSI Flange RF fitting made of ASTM A182 F51 (2205) with a NIT60 hollow plug, no O-ring, NIT60 packing, and a polycarbonate cover with hole is required, order part # HP60442444.


TeflonĀ® is a registered trademark of DuPont.

Contact Metal Samples Company for pricing and availability.
