Hydraulic Access Fitting Assemblies

View PDF version

for High Pressure Hydraulic Access Systems

The Hydraulic Access Fitting Assembly consists
of an access fitting body with locking pins, a solid or hollow plug, and a protective cover.

The access fitting body is manufactured from A350-LF2 as standard; however, other materials are available. The Flareweld fitting has a radius to allow it to conform to the profile of a pipe or vessel, and the flared end has a large surface area to allow for a strong weld joint, and provides
ample reinforcement material for the branch connection. Flanged end connections are also available which conform with ANSI or API specifications. Each access fitting body is supplied with four locking pins, which are
designed to hold the solid or hollow plug in place during retrieval operations. These locking pins are supplied in 17-4PH Stainless Steel with FKM O-Rings as standard, but other materials are available on request.

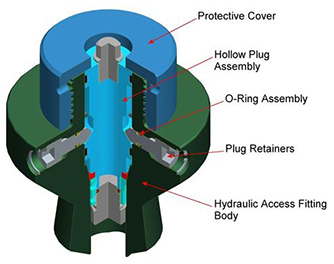

Above Left: Cutaway of hydraulic access fitting
showing inserted solid plug and plug retainers
with hollow plug beside it.
Above Right: Hydraulic access fitting
with cover beside it.


Non-Tee fittings are standard for use with standard corrosion monitoring devices. Tee-type fittings for injection and sampling applications are also available. These tee-type fittings are available with standard NPT threaded ports, or with integrally attached side tee flanges for connection to injection/sampling piping.

Solid plugs are available for attachment of corrosion monitoring coupon holders or injection tubes. Refer to the ‘Hydraulic Solid Plug Assemblies’ datasheet for details and ordering information. Hollow plugs are available for
attachment of corrosion monitoring probes. Refer to the ‘Hydraulic Hollow Plug Assemblies’ datasheet for details and ordering information.

Protective covers are required, and are designed to hold the solid/hollow plug in place after installation. Covers are available which provide secondary pressure retainment for enhanced safety, or non-pressure retaining for
holding the plug and protecting the access fitting from damage. Refer to the ‘Hydraulic Protective Covers’
datasheet for details and ordering information.



Hydraulic Access Systems Ordering Information

Flareweld Mount Hydraulic Access Fitting Bodies
Body Style Weight (lbs/kg) Height (in/mm) Equivalent Height (in)*
Non-Tee & 1/4" Tee 17.2 / 7.8 6.50 / 165 5.25
1/2" Tee, 3/4" Tee &
1" Tee
18.7 / 8.5 7.50 / 190 6.25
* ‘Equivalent Height’ is the value to be used in sizing formulas for devices to be used with the Hydraulic Access Fitting

Flange Mount Hydraulic Access Fitting Bodies
Body Style Flange
Rating
Weight
(lbs/kg)
Height
(in/mm)
Equivalent Height (in)*
Non-Tee & 1/4" Tee 150# 20.0 / 9.1 6.50 / 165 5.25
300# 21.4 / 9.7 6.50 / 165 5.25
600# 24.6 / 11.2 7.50 / 190 6.25
1500# 36.4 / 16.5 7.50 / 190 6.25
2500# 47.3 /21.5 7.50 / 190 6.25

1/2" Tee, 3/4" Tee &
1" Tee
150# 23.1 / 10.5 7.50 / 190 6.25
300# 24.5 / 11.1 7.50 / 190 6.25
600# 27.9 / 12.7 8.50 / 216 7.25
1500# 39.6 / 18.0 8.50 / 216 7.25
2500# 52.6 / 23.9 9.50 / 241 8.25
* ‘Equivalent Height’ is the value to be used in sizing formulas for devices to be used with the Hydraulic Access Fitting

Ordering Information

Mounting Type
HF1 - Flareweld
HF5 - Flanged - 2 Inch ANSI Ring Joint (RJ)
HF6 - Flanged - 2 Inch ANSI Raised Face (RF)
HF7 - Flanged - 2 Inch API Ring Joint (RJ)
  Tee Size
  Radius or Flange Class
  Fitting Alloy

Options
00000 - None
Your Part Number


Description:

Quantity:


This list represents our most common options. Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.


Spare Parts Available

Part Part No. Material
Locking Pin Assembly PS5669110834 17-4/FKM
Quantity:
Locking Pin O-Ring PI006734 FKM
Quantity:





Contact Metal Samples Company for pricing and availablility.
