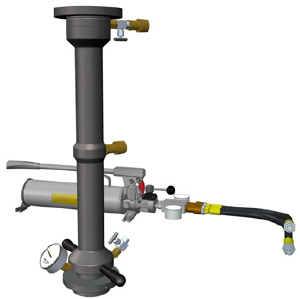

Hydraulic Retrieval Tool

View PDF version
User's Manual in PDF

for High Pressure Hydraulic Access Systems

In conjunction with other parts of Metal Samples' High Pressure Hydraulic Access System product line (service valves, access fittings, plugs, and covers), the Hydraulic Retrieval Tool allows installation and removal of corrosion monitoring devices in systems under operating pressures of up to 6,000 PSI (41.4 MPa) and temperatures from -15°F to 400°F (-26°C to 204°C).

Hydraulic Access Systems offer multiple benefits over standard Mechanical Access systems, including:

  • Absence of an internal thread, which eliminates the possibility of thread galling, as well as problems associated with debris in the threading
  • Shorter and lighter overall length and weight
  • Requires less operational clearance
  • Increased safety (no external moving parts, no
    telescoping action)
  • Increased simplicity of operation

The hydraulic retrieval tool is essentially an enclosed double-acting, 2-stage hydraulic cylinder. This design allows for safe and effortless operation at high pressures, as well as a relatively compact form factor. The hydraulic retrieval tool kit comes with a hydraulic pump (air or manual), and must be used with the hydraulic service valve (single or double isolation). When ordering, the retriever length must correspond to the appropriate probe length and service valve type. If required, the hydraulic retrieval tool can be used on standard 2” mechanical access fittings by using a mechanical-to-hydraulic fitting adapter.

Metal Samples' hydraulic retrieval tools are manufactured from 17-4 PH stainless steel which conforms to NACE MR0175/ISO 15156 standards.
The hydraulic retrieval tools have empty weights of 41 - 57 lbs. (18.3 - 26 kg), depending on the length of the tool.





Ordering Information for Hydraulic Retrieval Tool



Single Isolation Valve

Part # Max Attachment*
Length (inch / mm)
Retrieval Tool Length
(inch / mm)

HA104011 5.1 / 130 19.9 / 505
Quantity:
HA104021 7.9 / 200 24 / 610
Quantity:
HA104031 11.8 / 300 30 / 760
Quantity:
HA104041 15.8 / 400 35.8 / 910
Quantity:
HA104051 19.7 / 500 41.7 / 1060
Quantity:
HA104061 23.6 / 600 47.6 / 1210
Quantity:
HA104071 27.6 / 700 53.5 / 1360
Quantity:
HA104081 31.5 / 800 59.5 / 1510
Quantity:
HA104091 35.4 / 900 65.4 / 1660
Quantity:
HA104101 39.4 / 1000 71.3 / 1810
Quantity:

Double Isolation Valve

HA104012 9 / 230 28.2 / 717
Quantity:
HA104022 11.8 / 300 32.4 / 822
Quantity:
HA104032 15.8 / 400 38.3 / 972
Quantity:
HA104042 19.7 / 500 44.2 / 1122
Quantity:
HA104052 23.6 / 600 50.1 / 1272
Quantity:
HA104062 27.6 / 700 56 / 1422
Quantity:
HA104072 31.5 / 800 61.9 / 1572
Quantity:
HA104082 35.4 / 900 67.8 / 1722
Quantity:
HA104092 39.4 / 1000 73.8 / 1875
Quantity:
HA104102 43.3 / 1100 79.6 / 2022
Quantity:
* Probe / mount and coupon holder



Contact Metal Samples Company for pricing and availablility.
