Scale Coupons


Scale coupons (or deposition coupons) provide a qualitative measure of relative deposition rates in industrial water and manufacturing process systems.
P/N (Style) Size
(W x L x T)
Mounting Hole Diameter Area
(Sq. In.)

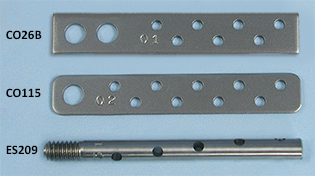

Coupon Diagram

CO26B 1/2" X 3" X 1/16" Ø1/4" (2 holes) 3.25
CO115 1/2" X 3" X 1/16" Ø1/4" (1 hole) 3.37
P/N (Style) Size
(Diameter x Length)
Thread Slot Area
(Sq. In.)
ES209 Ø1/4" x 3" 1/4"-20 X 3/8" 1/16" 2.505
  Alloy
  Finish (click here for descriptions of coupon finishes)
  Marking
  Weighed or Unweighed
          Insulators
           ES209 has no insulators
Your Part Number


Description:

Quantity:

* Lot # is assigned by Metal Samples and is associated with the heat number from the mill.

This list represents our most common options.  Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.
