Bypass Piping Systems

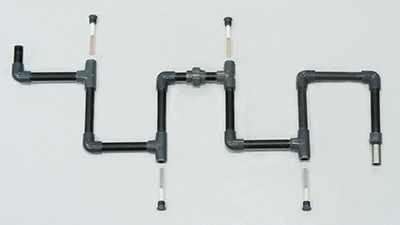

Metal Samples provides conventional or custom-designed bypass piping systems for on-line corrosion monitoring. Commonly used in the industrial water treatment industry to determine the corrosive properties of potable or cooling water, these systems are available in PVC, carbon and stainless steels, and other materials.

Bypass systems are easily installed to your existing piping. Normally, all you need is a 1" NPT male fitting on which to attach the bypass. Standard bypass systems come equipped with 4 pipe plug assemblies and 4 pre-weighed mild steel coupons. 1" bypass systems are supplied with a 8 gpm flow control valve. 3/4" bypass systems are supplied with a 5 gpm flow control valve.

Specifications

Temperature Rating
PVC Body - 110°F / 43°C
Metal Body - 210°F / 99°C1
Pressure Rating - 125 PSI / 8.6 Bar1

1Temperature and pressure limit based on flow control gasket


Ordering Information

Part #

Stations

Fitting Size Schedule Material
TF0008727  2 3/4" NPT Sch80 PVC
Quantity:
TF2441727 3
Quantity:
TF2433727 4
Quantity:
TF2446727 2 1" NPT Sch80 PVC
Quantity:
TF2476727 3
Quantity:
TF2442727 4
Quantity:
TF2462A59 2 1" NPT Sch40 Black Iron
Quantity:
TF0064A59 3
Quantity:
TF2440A59 4
Quantity:
TF2462159 2 1" NPT Sch40 316L SS
Quantity:
TF0064159 3
Quantity:
TF2440159 4
Quantity:
TF2462543 2 1" NPT Sch40 Galvanized
Quantity:
TF0064543 3
Quantity:
TF2440543 4
Quantity:

Standard bypass systems are shown here. Please contact the factory for other configurations, pipe sizes, and materials.


Spare/Replacement Parts

Part # Description Material
BA5311139 3/4" NPT Flow Control Body 303 S.S.
Quantity:
BA5310139 1" NPT Flow Control Body
Quantity:
BA5346370 Flow Control Gasket - 5 GPM Buna-N
Quantity:
BA5312370 Flow Control Gasket - 8 GPM
Quantity:
BA5313370 Flow Control Gasket - 10 GPM
Quantity:
BA5347370 Flow Control Gasket - 12 GPM
Quantity:
