Model LP6300 is a fixed-length, flange-mounted, linear polarization resistance probe which is
specifically designed for use with CorrTran style instruments. The probe is ideally suited for use
in high pressure and/or hazardous applications where threaded fittings are not available or not

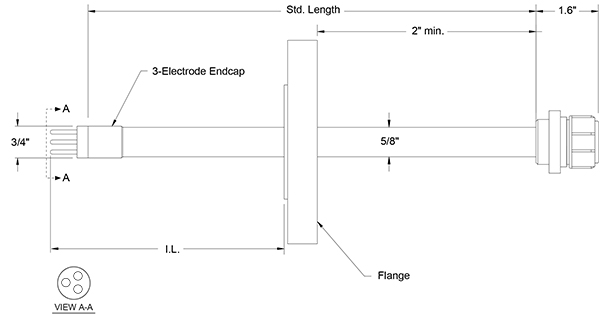

recommended. Process shutdown or process isolation is required for installation and inspection. The probe assembly consists of an insertion rod with a three-electrode endcap, a hermetically sealed connector, and a flange (as specified by customer), which are all welded in place. Insertion length (I.L.) is calculated to the end of the electrodes and, in this case, is based on a 1” total flange thickness. Customers can specify any length required. For standard probes, the maximum insertion length is given in the chart below. A variety of probe lengths are available to meet your specific needs (see Ordering Information). Electrodes are available in a wide variety of alloys and are sold separately (see Optional Accessories).
Specifications:
Probe Body - 316 Stainless Steel or C276
Endcap Seal - Glass
Fill Material - Epoxy
Temperature Rating - 500° F / 260° C
Pressure Rating - According to Flange Rating
Mounting - Mating Flange |
| Std. Length |
I.L. (Max) |
| 12" |
10.12" |
| 18" |
16.12" |
| 24" |
22.12" |
|
|
