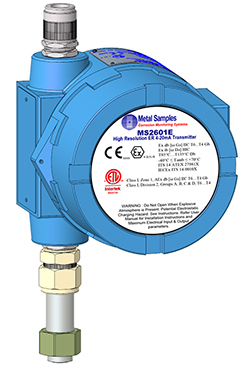

MS2601E High Resolution ER Transmitter

4-20 mA Analog Output



View Data Sheet (PDF)
User's Manual (PDF)
Certifications

Metal Samples' new compact MS2601E ER Transmitter (ERT) measures all types of electrical resistance (ER) corrosion probes. The new high-resolution, 16-bit measurement provides faster response, obtaining corrosion rates in hours instead of days.

The transmitter is provided in a weather-proof (IP 66 / NEMA-4X) enclosure and is flame-proof certified. It is designed to be mounted directly to the probe, but can also be mounted nearby using the optional mounting kit and a customer-supplied mounting pole.

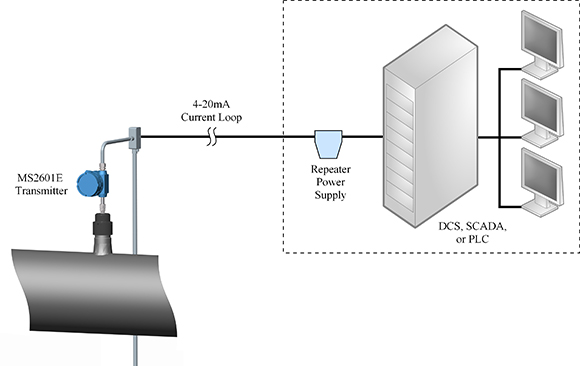

The MS2601E is completely loop-powered with an in-built isolator, so installation is simple. No external isolator/barrier is necessary. A two-wire connection is all that is required for both instrument power and data transmission. Setup is also simple, using a set of switches to select the probe type to be measured.





Technical Specifications

Model
MS2601E - High Resolution ER 4-20mA Transmitter, Direct Mount
MS2601E-XX* - High Resolution ER 4-20mA Transmitter, Remote Mount
XX* = Cable length in feet, up to 30 feet maximum, in 5 foot increments.

Physical Data
Instrument Weight: 5.25 lb. (2.38 Kg)
Total Weight w/ Accessories: 7.31 lb. (3.31 Kg)
Instrument Dimensions: 9.0" H x 5.3" W x 5.0" D
(22.86cm H x 13.46cm W x 12.70cm D)


Operating Temperature: -40° to 158°F (-40° to 70°C)
Storage Temperature: -40° to 176°F (-40° to 80°C)

Enclosure Material: Cast Aluminum (Copper-Free)
Mounting Specifications: Direct probe mount or Remote mount
(Up to a 2.5" (6.35 cm) Dia. pole)


Performance Data
Measurement Type: ER measurement using any standard ER probe type
(Wire Loop, Tube Loop, Cylindrical, Flush, Strip, etc.)
Range: 0-100% of probe life
Resolution: 0.0015% of Probe Life (16-bit)
Cycle Time: 1 minute

Electrical Data
Power Requirements: 11 to 28 VDC
Maximum Probe Cable Distance: 30 ft (9.1 m)
Output Specifications: 4-20 mA Current Loop Output

Hazardous Location Certifications
Europe and Worldwide
(ATEX and IECEx)

II 2(1) G Ex db [ia Ga] IIC T6….T4 Gb
II 2(1) D Ex tb [ia Da] IIIC T85°C …T130°C Db
- 40°C ≤ Tamb ≤ + 70°C
Ex db [ia Ga] IIC T6….T4 Gb
Ex tb [ia Da] IIIC T85°C …T130°C Db
- 40°C ≤ Tamb ≤ + 70°C

ATEX Certificate No: ITS14ATEX27981X
IECEx Certificate No: IECEx ITS 14.0010X



USA / Canada
(ETL)

Class I, Zone 1, AEx db [ia Ga] IIC T6….T4 Gb
Class I, Division 2, Groups A, B, C & D, T6…T4


Hazardous Location Certifications - Enclosure
Case Specifications: Explosion Proof (FM, CSA, UL)
  IP 66, NEMA 4X, 7BCD, 9EFG

Included Accessories (Direct-Mount Model)
Meter Prover, Operations Manual

Included Accessories (Remote-Mount Model)
Meter Prover, Operations Manual, Probe Cable, Mounting Hardware Kit

Contact Metal Samples for special cables and cable entries.



MS2601E Ordering Information

Model
MS2601E - High Resolution ER 4-20mA Transmitter, Direct Mount
MS2601E-XX* - High Resolution ER 4-20mA Transmitter, Remote Mount (specify cable length below)
  XX* = Cable length in feet, up to 30 feet maximum, in 5 foot increments.
